The HMC241LP3E from Analog Devices Inc. is a high-performance RF switch designed for microwave and millimeter-wave applications. This versatile component is a part of the company's Hittite Microwave product line and is engineered to deliver exceptional signal fidelity and isolation in a wide range of RF systems.

Key Features

• Frequency Range: The HMC241LP3E operates over a broad frequency range from DC to 3.5 GHz, making it suitable for diverse applications including cellular/PCS/3G, GSM, ISM, WLAN, and WiMAX.
• High Isolation: It offers high isolation of 45 dB typ at 2 GHz, which minimizes crosstalk and ensures signal integrity in complex RF circuits.
• Low Insertion Loss: With an insertion loss of 1.5 dB typ at 2 GHz, the switch maintains signal strength while routing it through the RF pathway.
• Non-Reflective Design: Its non-reflective configuration allows for better impedance matching, which is critical for maintaining signal quality in RF systems.
• Single Positive Control Line: The switch operates using a single positive control voltage of 0/+5V, simplifying the design and control interface.
• Fast Switching Speed: The HMC241LP3E boasts a fast switching speed of 6 ns, enabling rapid signal routing which is essential for time-sensitive applications.

Applications

• Test Instrumentation
• Base Station Infrastructure
• Fiber Optic Systems
• Wireless LAN
• RFID Systems

Package and Quality

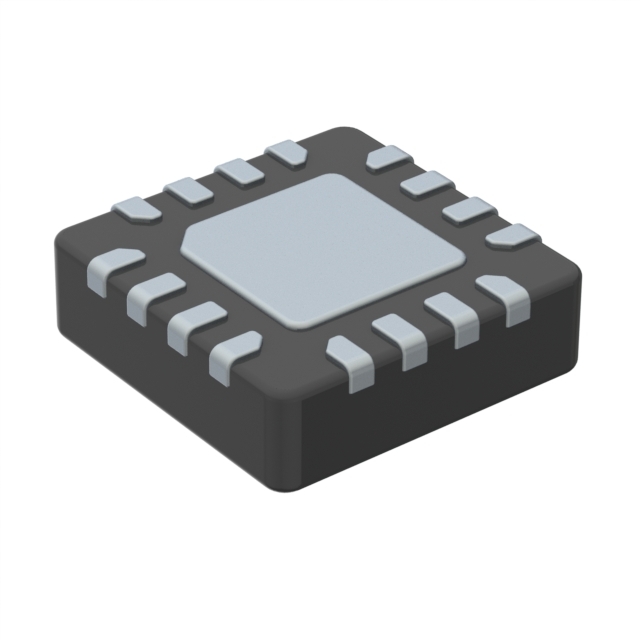

The HMC241LP3E is offered in a compact 3x3 mm QFN package, which is ideal for space-constrained applications. It is also RoHS compliant, ensuring that it meets the latest environmental standards for electronic components. Analog Devices Inc. is known for their commitment to quality, and this RF switch is no exception, providing reliable performance for critical RF applications.

Conclusion

Whether you're designing for commercial telecommunication infrastructure, sophisticated test equipment, or any other high-frequency application, the HMC241LP3E RF switch from Analog Devices Inc. offers a blend of performance, efficiency, and reliability. Its comprehensive feature set ensures that it can meet the stringent requirements of modern RF systems, making it a top choice for engineers and designers alike.
