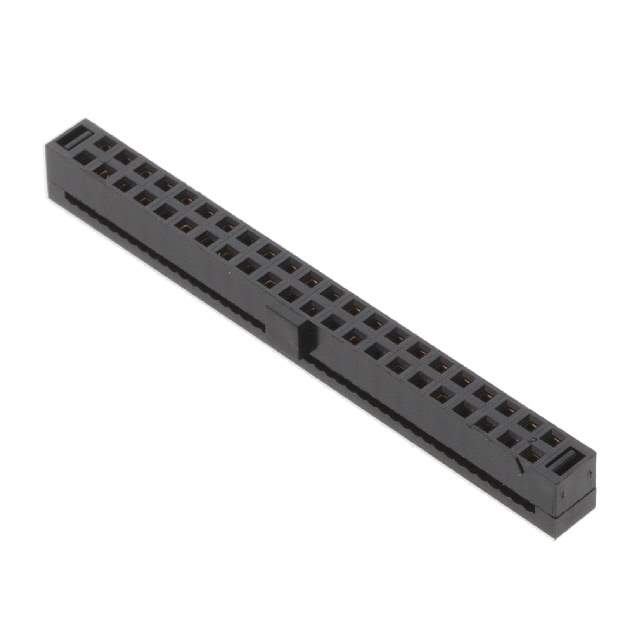

TCSD-22-01-N

Name: TCSD-22-01-N
Brand: Samtec Inc.
SKU: 960320
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	TCSD-22-01-N
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 44POS IDC 28AWG GOLD / 44 Position Rectangular Receptacle Connector IDC Gold 28 AWG
Datasheet	TCSD-22-01-N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr	Samtec Inc.
Series	Tiger Eye™ TCSD
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	44
Pitch	0.079" (2.00mm)
Number of Rows	2
Row Spacing	0.079" (2.00mm)
Mounting Type	Free Hanging (In-Line)
Fastening Type	Push-Pull
Cable Termination	IDC
Wire Type	Ribbon Cable
Wire Gauge	28 AWG
Features	Feed Through, Polarizing Key
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Color	Black
Base Product Number	TCSD-22
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	SAM10078
Standard Package	12
Win Source Part Number	960320-TCSD-22-01-N
Ultra Librarian 3D Model	Ultra Librarian TCSD-22-01-N CAD Model

Description

The Tiger Eye™ TCSD series rectangular connector is a receptacle type with 44 positions.

Positions: 44
Pitch: 0.079" (2.00mm)
Color: Black
Feature: Feed through and polarizing key
Rows: Two rows
Contact Type: Female socket
Plating: Gold plated with a thickness of 30.0µin (0.76µm)
Packaging: Tube
Wire Gauge: 28 AWG
Cable Termination: IDC
Wire Type: Ribbon cable
Standard Package: 12
Mounting Type: Free hanging (in-line)
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.4051
Manufacturer: Samtec Inc.
