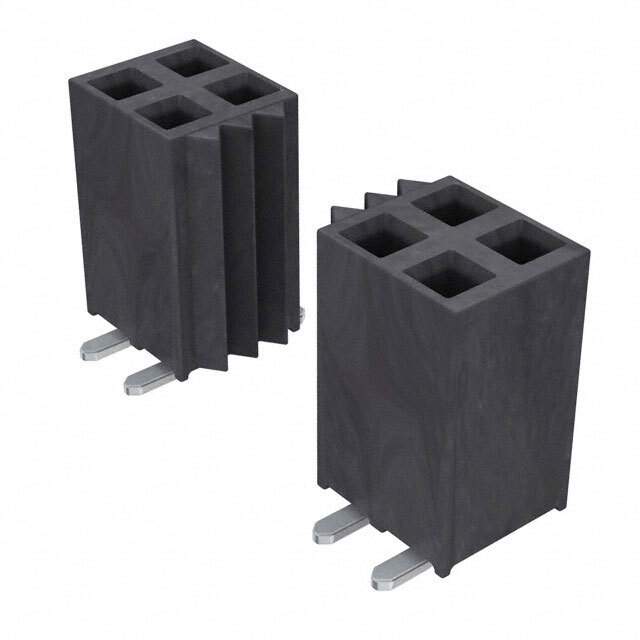

SSW-116-22-S-D-VS

Name: SSW-116-22-S-D-VS
Brand: Samtec Inc.
SKU: 1288073
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSW-116-22-S-D-VS
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSW-116-22-S-D-VS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	32
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSW-116
Other Names	Q5396740CF
Standard Package	13
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1288073-SSW-116-22-S-D-VS
Ultra Librarian 3D Model	Ultra Librarian SSW-116-22-S-D-VS CAD Model

Description

The 1288073-SSW-116-22-S-D-VS is a 32 position receptacle connector from Samtec Inc. with a push-pull fastening type.

Positions: 32
Connector Type: Receptacle
Fastening Type: Push-Pull
Contact Type: Forked
Positions Loaded: All
Rows: 2
Pitch: 0.100" (2.54mm)
Mounting Technology: SMD (SMT)
Contact Material: Phosphor Bronze
Contact Finish (Mating): Gold (30.0µin (0.76µm))
Post Finish: Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Flammability Rating: UL94 V-0
Temperature Range: -55°C to 125°C
Current Rating: 4.7A per Contact
REACH: Unaffected
ECCN: EAR99
HTSUS: 8536.69.4040
