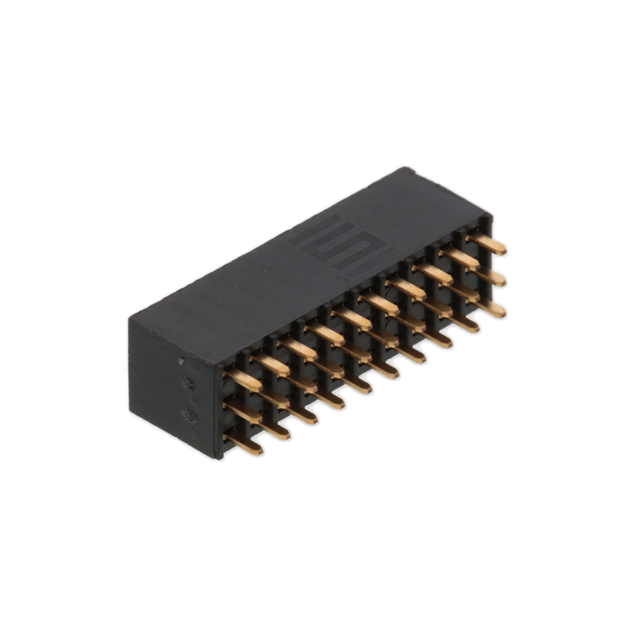

Same model may have multiple batches, images only for reference.

SSW-110-01-G-T

Name: SSW-110-01-G-T
Brand: Samtec Inc.
SKU: 1288531
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSW-110-01-G-T
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSW-110-01-G-T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	30
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	3
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.104" (2.64mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SSW-110
Other Names	SSW-110-01-G-T,SAM15293
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1288531-SSW-110-01-G-T
Ultra Librarian 3D Model	Ultra Librarian SSW-110-01-G-T CAD Model

Alternative Products

Description

The Samtec SSW-110-01-G-T rectangular connector is a high-performance electronic component that is perfect for various applications. With a pitch of 0.100 inches, this connector is designed to be seated easily on a through-hole mount without taking up too much space.

Pitch: 0.100 inches
Mounting: Through-Hole
Contact Shape: Square
Voltage Rating: -
Current Rating: 4.7A per contact
Temperature Range: -55°C to 125°C
Flammability Rating: UL94 V-0
Package: Bulk
Supplier: Samtec Inc.
