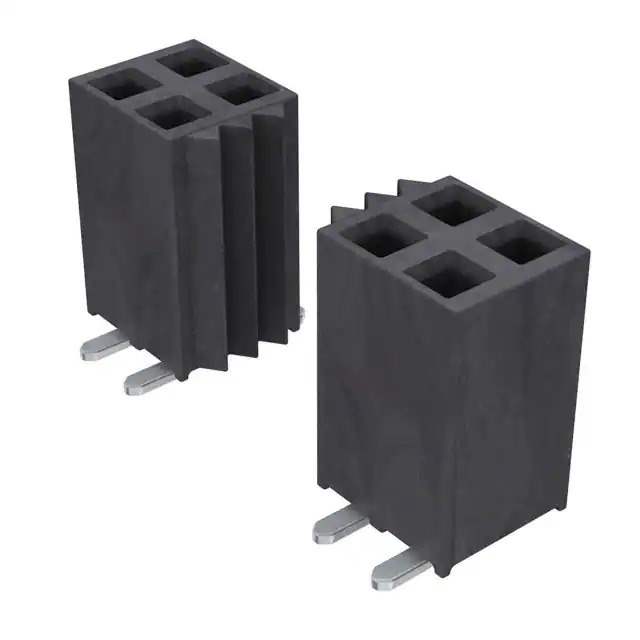

Same model may have multiple batches, images only for reference.

SSW-107-22-S-D-VS

Name: SSW-107-22-S-D-VS
Brand: Samtec Inc.
SKU: 897792
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSW-107-22-S-D-VS
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 14POS 0.1 GOLD SMD / 14 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold
Datasheet	SSW-107-22-S-D-VS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Tube
Product Status	Active
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	14
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSW-107
Standard Package	30 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	897792-SSW-107-22-S-D-VS
Ultra Librarian 3D Model	Ultra Librarian SSW-107-22-S-D-VS CAD Model

Description

The SSW series connector, part number 897792-SSW-107-22-S-D-VS, is a female receptacle connector from Samtec Inc.

Positions: 14
Rows: 2
Pitch: 0.100" (2.54mm)
Mounting: Surface Mount
Contact Type: Forked
Contact Material: Phosphor Bronze
Contact Finish: Gold (30.0µin (0.76µm))
Insulation Material: Liquid Crystal Polymer (LCP)
Color: Black
Temperature Range: -55°C to 125°C
Current Rating: 4.7A per contact
