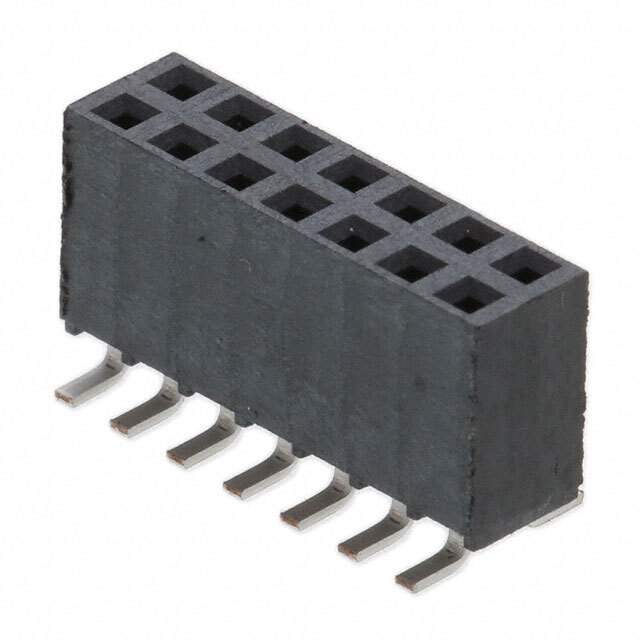

SSW-107-22-S-D-VS-P-TR

Name: SSW-107-22-S-D-VS-P-TR
Brand: Samtec Inc.
SKU: 1288271
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SSW-107-22-S-D-VS-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSW-107-22-S-D-VS-P-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Tape & Reel
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	14
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Pick and Place
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSW-107
Other Names	SAM14626CT,SSW-107-22-S-D-VS-P-TR,SAM14626DKR,SAM14626TR
Standard Package	175
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1288271-SSW-107-22-S-D-VS-P-TR
Ultra Librarian 3D Model	Ultra Librarian SSW-107-22-S-D-VS-P-TR CAD Model

Alternative Products

Description

The SSW series connector is a rectangular, SMT receptacle connector with a pitch of 0.100” (2.54mm) and 14 positions across two rows.

Connector Type: Receptacle
Mounting Type: SMT
Pitch: 0.100” (2.54mm)
Positions: 14
Rows: 2
Contact Material: Phosphor Bronze
Contact Finish-Mating: Gold
Contact Finish Thickness-Mating: 30.0μin (0.76μm)
Contact Finish-Post: Tin
Applications: Board to Board or Cable
Contact Shape: Square
Current Rating: 4.7A per contact
Temperature Range: -55°C to 125°C
Feature: Pick and Place
Packaging: Tape and Reel
Voltage Rating: Not specified
Ingress Protection Rating: Not specified
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Height: 0.335” (8.51mm)
Flammability Rating: UL94 V-0
REACH: Unaffected
