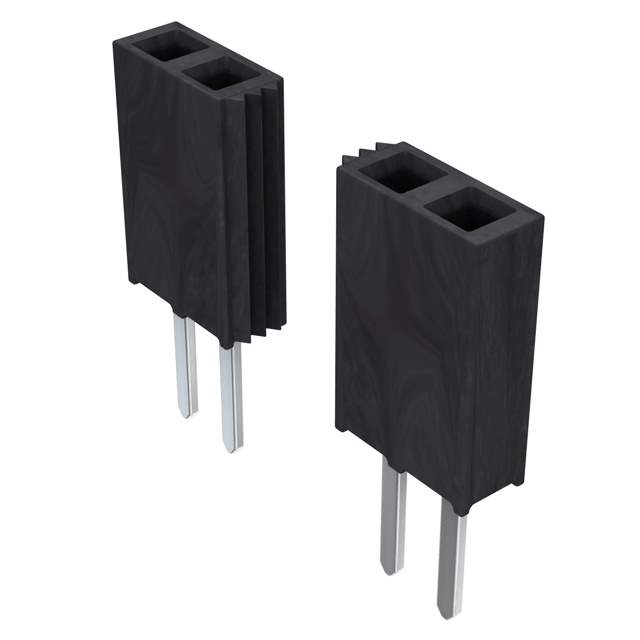

SSW-106-02-T-D Real Image
Same model may have multiple batches, images only for reference.

SSW-106-02-T-D

Part No SSW-106-02-T-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSW-106-02-T-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSW
Package Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 12
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Black
Insulation Height 0.335" (8.51mm)
Contact Length - Post 0.194" (4.93mm)
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 4.7A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SSW-106
Other Names SAM1221-06
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1288286-SSW-106-02-T-D
Ultra Librarian 3D Model Ultra Librarian SSW-106-02-T-D CAD Model

Description

The SSW series connector is a 12-position receptacle connector with a forked contact type.

  • Positions: 12
  • Connector Type: Receptacle
  • Contact Type: Forked
  • Fastening Type: Push-Pull
  • Termination: Solder
  • Pitch Mating: 0.100-inch (2.54mm)
  • Style: Board-to-Board or Cable
  • Contact Finish: Tin
  • Contact Finish Thickness: -
  • Contact Material: Phosphor Bronze
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Voltage Rating: -
  • Material Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 105°C
  • Mounting Type: Through-Hole
  • Insulation Height: 0.335 inches (8.51mm)
  • Contact Shape: Square
