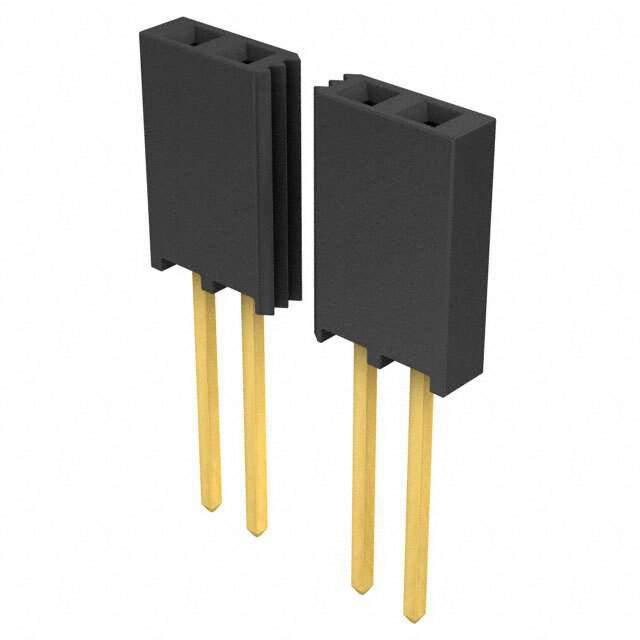

The SSQ series connector from Samtec Inc. is a receptacle connector with a forked contact type and a connector type of receptacle.

• Voltage Rating: 465VAC and 655VDC
• Pitch-Mating: 0.100” (2.54mm)
• Contact Finish-Mating: Gold with a thickness of 20.0μin (0.51μm)
• Termination: Solder
• Fastening Type: Push-pull
• Insulation Material: Liquid crystal polymer (LCP)
• Insulation Height: 0.335” (8.51mm)
• Temperature Range: -55°C to 125°C
• Flammability Rating: UL94 V-0
• Contact Finish-Post: Gold with a thickness of 3.00μin (0.076μm)
• Contact Length-Post: 0.394” (10.00mm)
• Package: Bulk
• Suitable for: Use in various applications
