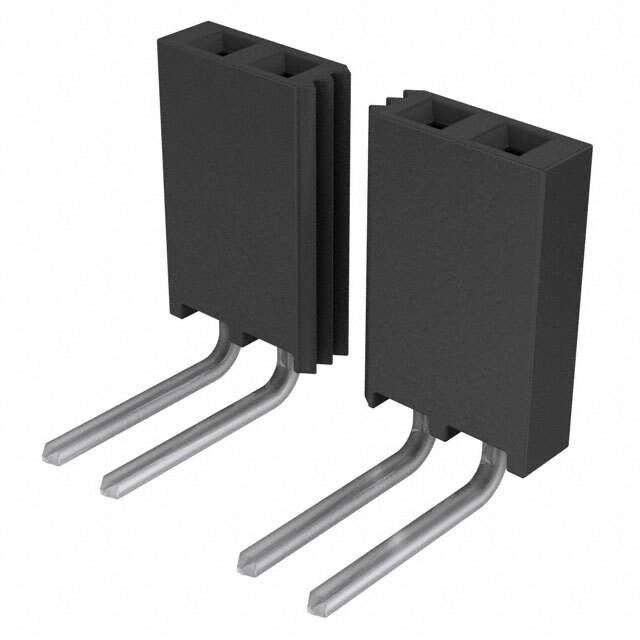

SSQ-149-03-T-S-RA Real Image
Same model may have multiple batches, images only for reference.

SSQ-149-03-T-S-RA

Part No SSQ-149-03-T-S-RA
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSQ-149-03-T-S-RA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSQ
Package Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 49
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Black
Insulation Height 0.095" (2.41mm)
Contact Length - Post 0.300" (7.62mm)
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Voltage Rating 465VAC, 655VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SSQ-149
Other Names SAM1207-49
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1289112-SSQ-149-03-T-S-RA
Ultra Librarian 3D Model Ultra Librarian SSQ-149-03-T-S-RA CAD Model

Description

The 1289112-SSQ-149-03-T-S-RA is a 49 position receptacle connector from Samtec Inc. with a push-pull fastening type.

  • Positions: 49
  • Connector Type: receptacle
  • Fastening Type: push-pull
  • Contact Type: forked
  • Loaded Positions: all positions are loaded
  • Number of Rows: single row
  • Pitch: 0.100" (2.54mm)
  • Mounting Type: through hole, right angle
  • Contact Material: phosphor bronze
  • Contact Finish Mating: tin
  • Contact Finish Post: tin
  • Insulation Material: liquid crystal polymer (LCP)
  • Insulation Color: black
  • Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 105°C
  • Voltage Rating: 465VAC and 655VDC
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
