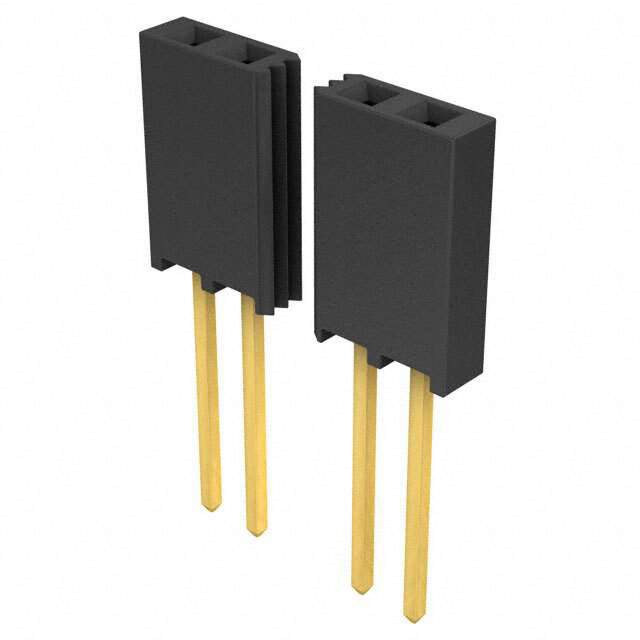

The SSQ series female socket connector from Samtec Inc. is an ideal solution for connecting electronic components.

• With a 30-position forked contact type, this receptacle connector is perfect for use in rectangular connectors, headers, and female sockets:
• The connector is made of phosphor bronze contact material and has a voltage rating of 465VAC, 655VDC:
• This push-pull fastening type connector has a pitch of 0.100" (2.54mm) and is designed for board-to-board or cable style applications:
• The connector has a contact finish of gold with a thickness of 20.0µin (0.51µm) for mating and gold with a thickness of 3.00µin (0.076µm) for post:
• The connector is designed to operate in a temperature range of -55°C to 125°C:
• The insulation material used is liquid crystal polymer (LCP) and has a height of 0.335" (8.51mm):
• The connector is mounted through hole and has a contact length of 0.394" (10.00mm):
• The connector is black in color and is rated UL94 V-0 for material flammability:
