Same model may have multiple batches, images only for reference.

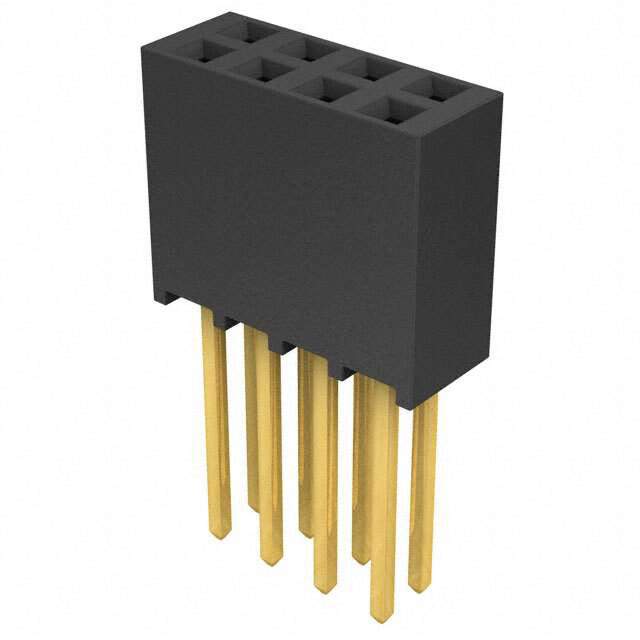

SSQ-104-03-G-D Real Image
Same model may have multiple batches, images only for reference.

SSQ-104-03-G-D

Part No SSQ-104-03-G-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSQ-104-03-G-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSQ
Package Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Insulation Color Black
Insulation Height 0.335" (8.51mm)
Contact Length - Post 0.394" (10.00mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Voltage Rating 465VAC, 655VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number SSQ-104
Other Names SAM1196-04
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1289369-SSQ-104-03-G-D
Ultra Librarian 3D Model Ultra Librarian SSQ-104-03-G-D CAD Model

Description

The SSQ series is a range of rectangular connectors designed for board-to-board or cable connections.

  • Connector Type: receptacle
  • Fastening Type: push-pull
  • Row Count: 2
  • Positions: 8
  • Contact Type: forked
  • Voltage Rating: 465VAC and 655VDC
  • Contact Material: phosphor bronze
  • Insulation Material: liquid crystal polymer (LCP)
  • Insulation Color: black
  • Contact Finish Mating: gold with a thickness of 20.0µin (0.51µm)
  • Contact Finish Post: gold with a thickness of 3.00µin (0.076µm)
  • Pitch: 0.100" (2.54mm)
  • Mounting: through-hole
  • Flammability Rating: UL94 V-0
  • Temperature Range: -55°C to 125°C
