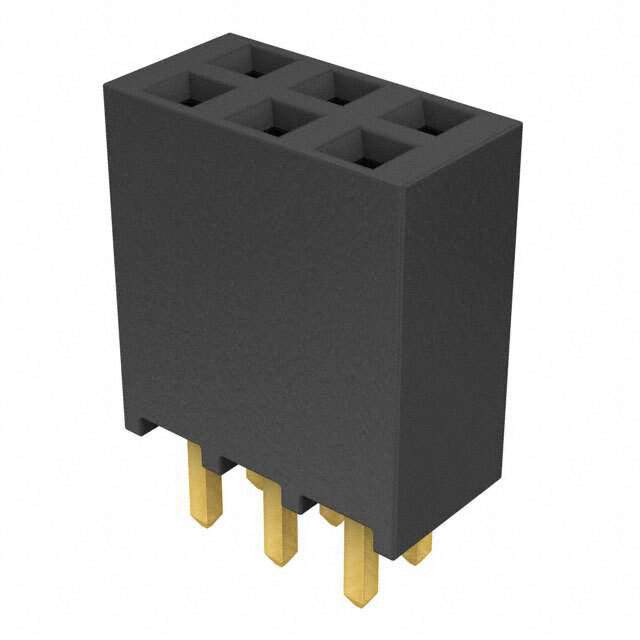

SSQ-103-01-G-D Real Image
Same model may have multiple batches, images only for reference.

SSQ-103-01-G-D

Part No SSQ-103-01-G-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSQ-103-01-G-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSQ
Package Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 6
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Insulation Color Black
Insulation Height 0.335" (8.51mm)
Contact Length - Post 0.104" (2.64mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Voltage Rating 465VAC, 655VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number SSQ-103
Other Names SAM1179-03
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1289234-SSQ-103-01-G-D
Ultra Librarian 3D Model Ultra Librarian SSQ-103-01-G-D CAD Model

Description

The SSQ series 6-position female receptacle connector is a reliable solution for board to board applications.

  • Pitch: 0.100" (2.54mm)
  • Contacts: Forked, Phosphor Bronze with Gold Plating
  • Operating Temperature Range: -55°C to 125°C
  • Voltage Rating: 465VAC, 655VDC
  • Mounting Type: Through-Hole
  • Packaging: Bulk
  • Material Flammability Rating: UL94 V-0
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Contact Finish-Mating: Gold, 20.0µin (0.51µm)
  • Contact Finish-Post: Gold, 3.00µin (0.076µm)
  • Contact Length-Post: 0.104" (2.64mm)
  • Insulation Height: 0.335" (8.51mm)
  • Contact Shape: Square
  • ECCN: EAR99
