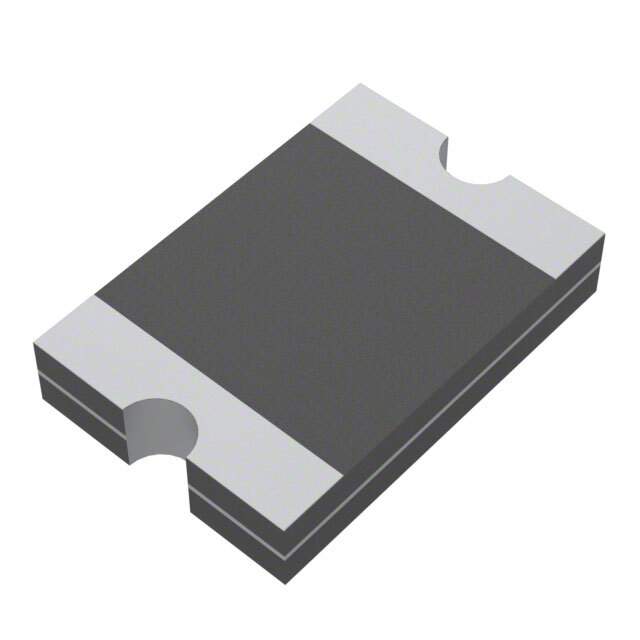

Same model may have multiple batches, images only for reference.

SMD1812B110TF/16

Name: SMD1812B110TF/16
Brand: Yageo
SKU: 987442
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SMD1812B110TF/16
Manufacturer	Yageo
Catalog	PTC Resettable Fuses
Description	PPTC SMD 1812, 16V 1.1A, REEL 7" / Polymeric PTC Resettable Fuse 16V 1.1 A Ih Surface Mount 1812 (4532 Metric), Concave
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>PTC Resettable Fuses
Mfr	YAGEO
Series	SMD1812
Package	Tape & Reel
Type	Polymeric
Voltage - Max	16V
Current - Max	100 A
Current - Hold (Ih) (Max)	1.1 A
Current - Trip (It)	1.95 A
Time to Trip	300 ms
Resistance - Initial (Ri) (Min)	60 mOhms
Resistance - Post Trip (R1) (Max)	180 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Mounting	SMD (SMT)
Package / Case	1812 (4532 Metric), Concave
Dimension	0.179" L x 0.128" W (4.55mm x 3.24mm)
Thickness (Max)	0.079" (2.00mm)
Approval Agency	cUL, TUV, UL
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8533.40.8070
Other Names	YAG6739CT,YAG6739TR,YAG6739DKR
Standard Package	1,500
Win Source Part Number	987442-SMD1812B110TF/16
Ultra Librarian 3D Model	Ultra Librarian SMD1812B110TF/16 CAD Model

Description

The SMD1812B110TF/16 is a PTC resettable fuse with a maximum voltage of 16V and a maximum current of 100A.

Voltage: 16V (Max)
Current: 100A (Max)
Current Hold: 1.1A
Current Trip: 1.95A
Package: 1812 (4532 Metric), concave
Temperature Range: -40°C to 85°C
Time to Trip: 300ms
Resistance: 60mOhms (initial) and 180mOhms (post-trip)
REACH: Compliant
ECCN: EAR99
Approvals: cUL, TUV, and UL
