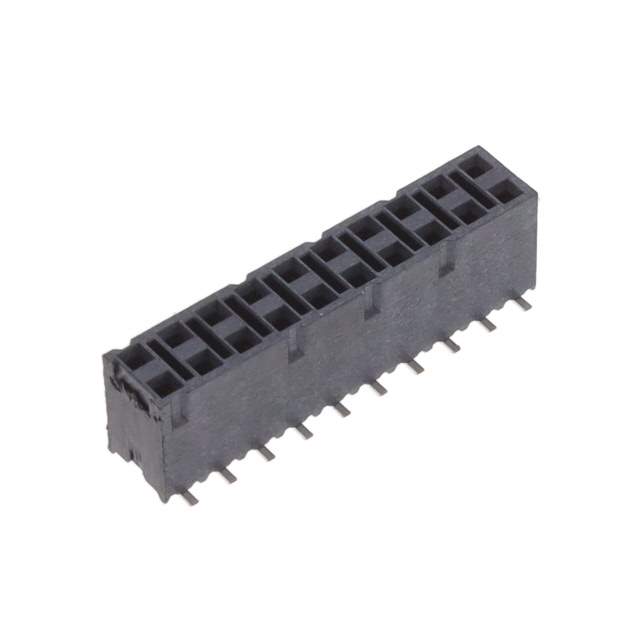

The SSM series from Samtec Inc. presents a receptacle, bottom entry connector with pick and place feature.

• Contact Type: Female socket contact.
• Termination: Soldered to the board.
• Positions Loaded: All.
• Rows: 2.
• Fastening Type: Push-pull.
• Package: Tape and reel.
• Contact Material: Phosphor bronze.
• Voltage Rating: 405VAC and 572VDC.
• Insulation Material: Liquid crystal polymer (LCP).
• Connector Type: Board to board or cable.
• Pitch Mating: 0.100" (2.54mm).
• Contact Finish Mating: Gold with a thickness of 10.0µin (0.25µm).
• Contact Finish Post: Tin.
• Insulation Color: Black.
• Row Spacing Mating: 0.100" (2.54mm).
• Insulation Height: 0.290" (7.37mm).
• Contact Shape: Square.
• Operating Temperature: -55°C to 125°C.
