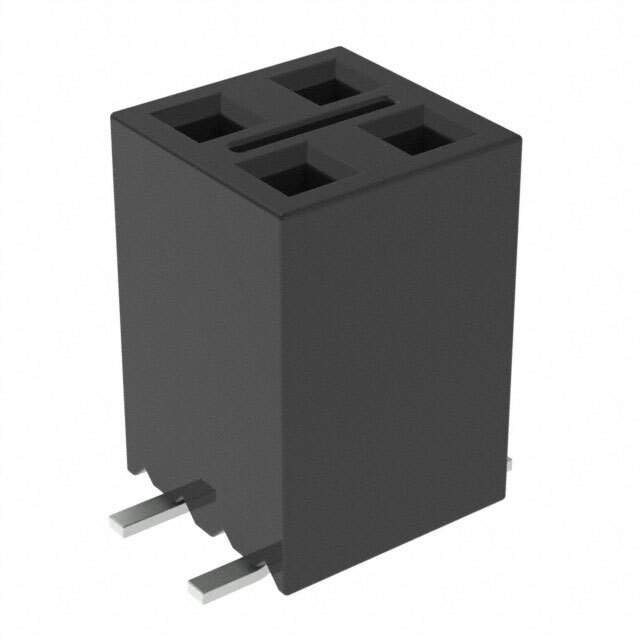

SSM-102-S-DV-TR Real Image
Same model may have multiple batches, images only for reference.

SSM-102-S-DV-TR

Part No SSM-102-S-DV-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSM-102-S-DV-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSM
Package Tape & Reel
Connector Type Receptacle, Pass Through
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 4
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.290" (7.37mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Tin
Current Rating (Amps) 5.2A per Contact
Voltage Rating 405VAC, 572VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SSM-102
Other Names SAM14583TR,SAM14583DKR,SAM14583CT,SSM-102-S-DV-TR
Standard Package 475
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1291896-SSM-102-S-DV-TR
Ultra Librarian 3D Model Ultra Librarian SSM-102-S-DV-TR CAD Model

Description

The SSM series is a rectangular connector that features a receptacle type connector with female socket contact. It has 4 positions with all positions loaded and has a pitch of 0.100" (2.54mm) for mating.

  • Contact Finish: gold
  • Contact Finish Thickness Mating: 30.0µin (0.76µm)
  • Contact Finish Post: tin
  • Mounting: SMD (SMT)
  • Fastening Type: push-pull
  • Current Rating: 5.2A per contact
  • Temperature Range: -55°C to 125°C
  • Insulation Material: liquid crystal polymer (LCP)
  • Insulation Height: 0.290" (7.37mm)
  • Insulation Color: black
  • Packaging: tape & reel
  • Base Product Number: SSM-102
  • Alternative Parts: SAM14583TR, SAM14583DKR, SAM14583CT and SFMC-118
