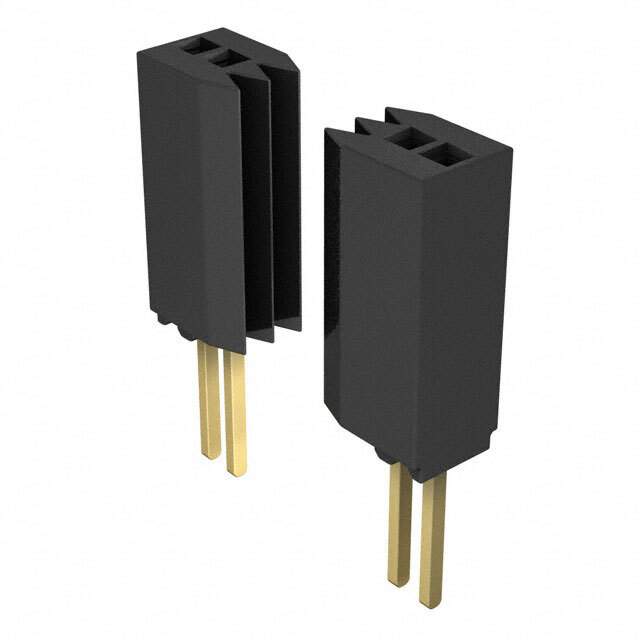

Same model may have multiple batches, images only for reference.

SMS-106-02-G-S

Name: SMS-106-02-G-S
Brand: Samtec Inc.
SKU: 1094581
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMS-106-02-G-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 6POS 0.05 GOLD PCB / 6 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
Datasheet	SMS-106-02-G-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SMS
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.190" (4.83mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Gold
Current Rating (Amps)	5A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SMS-106
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM9966
Standard Package	1
Win Source Part Number	1094581-SMS-106-02-G-S
Ultra Librarian 3D Model	Ultra Librarian SMS-106-02-G-S CAD Model

Alternative Products

Description

The SMS series from Samtec Inc. is a board to board style rectangular connector with a pitch of 0.050" (1.27mm) and a receptacle connector type.

Positions: 6 forked contact positions loaded
Contact Material: Phosphor bronze
Contact Plating (Mating): Gold with a thickness of 10.0µin (0.25µm)
Contact Plating (Post): Gold with a thickness of 3.00µin (0.076µm)
Fastening Type: Push-pull
Termination: Solder terminated
Insulation Material: Liquid crystal polymer (LCP)
Insulation Height: 0.335" (8.51mm)
Temperature Range: -55°C to 125°C
Mounting: Through-hole mounting
Color: Black
Package: Bulk
Ideal for: Applications that require a high-density and high-reliability connection
