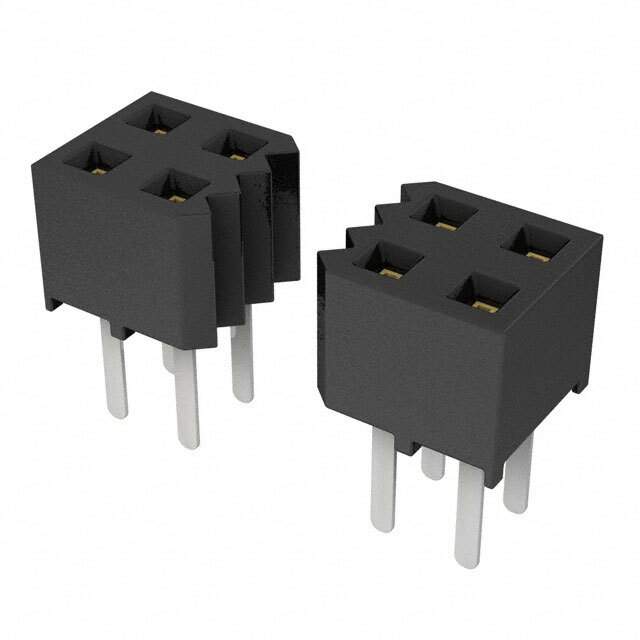

Same model may have multiple batches, images only for reference.

SMM-107-01-S-D

Name: SMM-107-01-S-D
Brand: Samtec Inc.
SKU: 1285337
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SMM-107-01-S-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SMM-107-01-S-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SMM
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	14
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.140" (3.56mm)
Contact Length - Post	0.120" (3.05mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	3.2A per Contact
Voltage Rating	350VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SMM-107
Other Names	SAM12862,SMM-107-01-S-D
Standard Package	41
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1285337-SMM-107-01-S-D
Ultra Librarian 3D Model	Ultra Librarian SMM-107-01-S-D CAD Model

Alternative Products

Description

The SMM-107-01-S-D is a rectangular connector from Samtec Inc.

Manufacturer: Samtec Inc.
Series: Tiger Eye™ SMM
Connector Type: Receptacle
Positions: 14
Contact Type: Female Socket
Positions Loaded: All
Rows: Two
Termination: Solder
Fastening Type: Push-Pull
Package: Tube
Voltage Rating: 350VAC
Contact Material: Beryllium Copper
Current Rating: 3.2A per contact
ECCN: EAR99
Application: Board or cable
