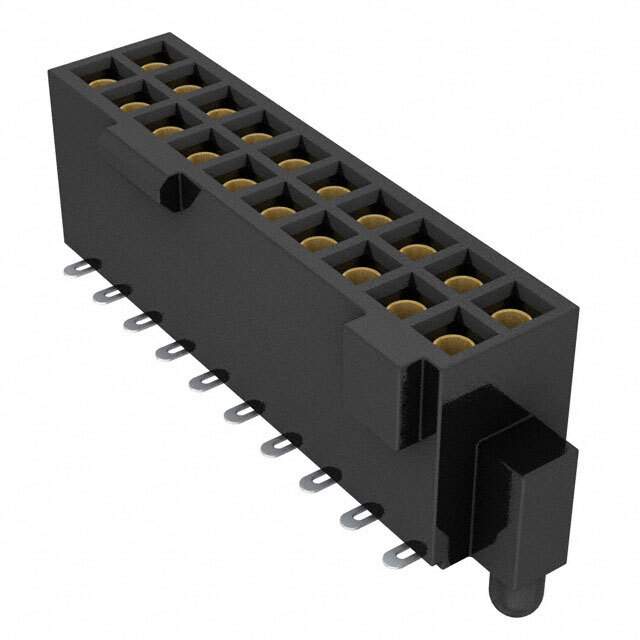

Same model may have multiple batches, images only for reference.

SFML-110-02-S-D-A

Name: SFML-110-02-S-D-A
Brand: Samtec Inc.
SKU: 1285421
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SFML-110-02-S-D-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SFML-110-02-S-D-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFML
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Locking Ramp
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.185" (4.70mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Board Guide
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Base Product Number	SFML-110
Other Names	SAM11754,SFML-110-02-S-D-A
Standard Package	35
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1285421-SFML-110-02-S-D-A
Ultra Librarian 3D Model	Ultra Librarian SFML-110-02-S-D-A CAD Model

Description

The Tiger Eye™ SFML series rectangular connector is a receptacle type connector with 20 female socket contacts.

Contacts: 20 female socket
Pitch: 0.050 inches
Contact Material: Gold
Contact Finish Thickness: 30.0µin
Fastening Type: Locking Ramp
Mounting: Surface-mounted
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Voltage Rating: 250VAC
Packaging: Tubes
Standard Package: 35
