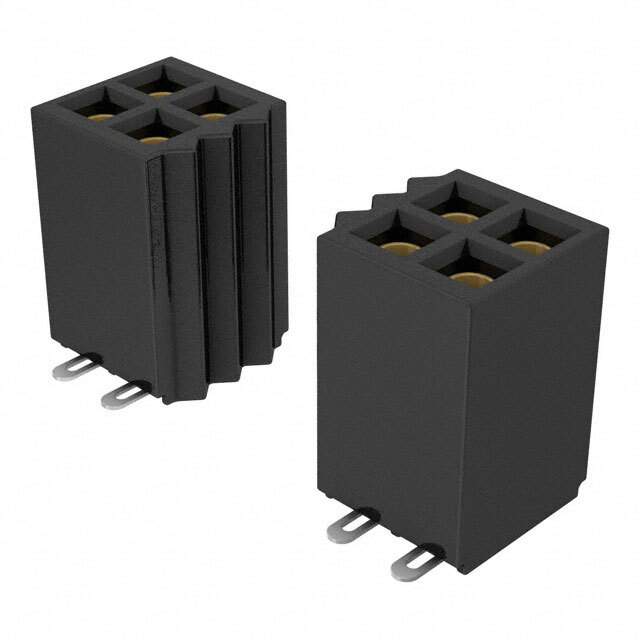

The SFMC-148-T2-L-D is a female socket receptacle connector from Samtec's Tiger Eye SFMC series.

• Positions: 96
• Positions Loaded: Yes
• Rows: Two
• Pitch: 0.050" (1.27mm)
• Fastening Type: Push-Pull
• Mounting: SMD (SMT)
• Contact Material: Phosphor Bronze
• Contact Finish (Mating): Gold
• Contact Finish (Post): Tin
• Current Rating: 2.9A per contact
• Operating Temperature: -55°C to 125°C
• Insulation Material: Liquid Crystal Polymer (LCP)
• Insulation Color: Black
• Contact Shape: Square
• Contact Length (Mating): 0.200" (5.08mm)
• Contact Length (Post): 0.090" (2.29mm)
• Insulation Height: 0.185" (4.70mm)
• Row Spacing (Mating): 0.050" (1.27mm)
• Contact Finish Thickness (Mating): 10.0µin (0.25µm)
• Contact Finish Thickness (Post): Not Specified
