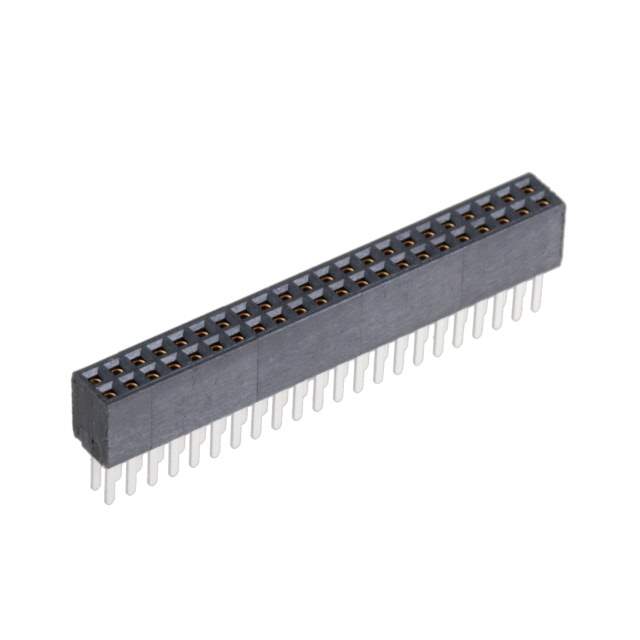

SFMC-122-01-S-D Real Image
Same model may have multiple batches, images only for reference.

SFMC-122-01-S-D

Part No SFMC-122-01-S-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFMC-122-01-S-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFMC
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 44
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.180" (4.57mm)
Contact Length - Post 0.120" (3.05mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 2.9A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SFMC-122
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285906-SFMC-122-01-S-D
Ultra Librarian 3D Model Ultra Librarian SFMC-122-01-S-D CAD Model

Description

The SFMC-122-01-S-D is a rectangular connector receptacle manufactured by Samtec Inc.

  • Series: Tiger Eye™ SFMC
  • Positions: 44
  • Rows: 2
  • Temperature Range: -55°C to 125°C
  • Pitch-Mating: 0.050" (1.27mm)
  • Termination: Solder
  • Fastening: Push-pull
  • Contacts: Beryllium copper
  • Contact Finish for Mating: Gold
  • Contact Finish for Post: Tin
  • Insulation Material: Liquid crystal polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Mounting: Through-hole
  • Row Spacing: 0.050" (1.27mm)
  • Ideal for: Board to board or cable style applications
