Same model may have multiple batches, images only for reference.

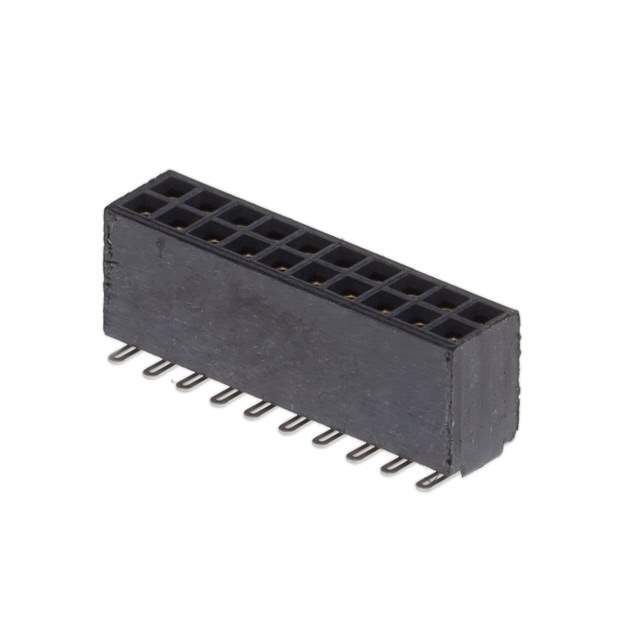

SFMC-110-02-L-D-K-TR Real Image
Same model may have multiple batches, images only for reference.

SFMC-110-02-L-D-K-TR

Part No SFMC-110-02-L-D-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFMC-110-02-L-D-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFMC
Package Tape & Reel
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.185" (4.70mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Pick and Place
Current Rating (Amps) 2.9A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SFMC-110
Other Names 612-SFMC-110-02-L-D-K-TRDKR,SFMC-110-02-L-D-K-FR,SFMC-110-02-L-D-K-TR,612-SFMC-110-02-L-D-K-TRCT,612-SFMC-110-02-L-D-K-TR
Standard Package 950
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1286682-SFMC-110-02-L-D-K-TR
Ultra Librarian 3D Model Ultra Librarian SFMC-110-02-L-D-K-TR CAD Model

Description

The Tiger Eye™ SFMC rectangular connector is a header, receptacle, and female socket with 20 positions.

  • Positions: 20
  • Positions Loaded: All positions
  • Fastening Type: Push-Pull
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Package: Tape and Reel
  • Contact Finish: Gold with a thickness of 10.0µin (0.25µm)
  • Contact Finish of the Post: Tin
  • Pitch of Mating: 0.050" (1.27mm)
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Current Rating (amps): 2.9A per contact
  • HTSUS: 8536.69.4040
  • Manufacturer: Samtec Inc.
