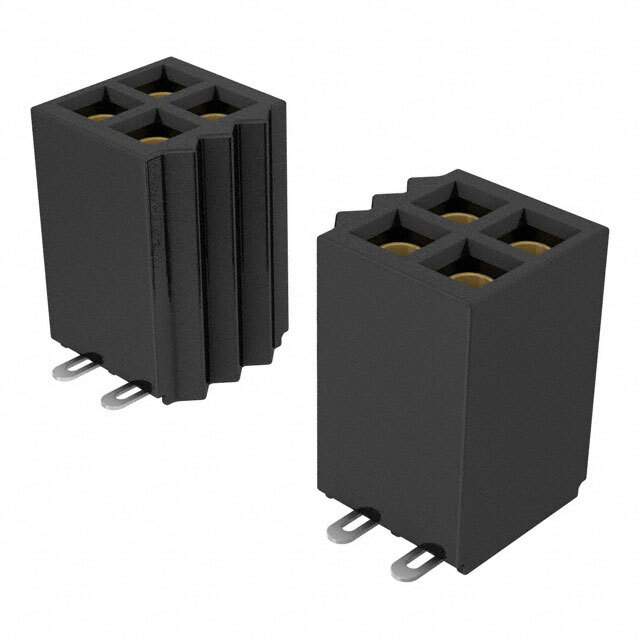

SFMC-109-T2-F-D

Name: SFMC-109-T2-F-D
Brand: Samtec Inc.
SKU: 1285620
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SFMC-109-T2-F-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SFMC-109-T2-F-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFMC
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	18
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Insulation Color	Black
Insulation Height	0.185" (4.70mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	2.9A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SFMC-109
Standard Package	1
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1285620-SFMC-109-T2-F-D
Ultra Librarian 3D Model	Ultra Librarian SFMC-109-T2-F-D CAD Model

Alternative Products

Description

The SFMC-109-T2-F-D is a rectangular connector from Samtec Inc. with 18 positions and a pitch of 0.050” (1.27mm).

Positions: 18
Pitch: 0.050” (1.27mm)
Connector Type: Receptacle
Contact Type: Female Socket
Positions Loaded: All
Rows: Two
Mounting: Surface-Mounting
Package: Tube
Current Rating: 2.9A per contact
Operating Temperature Range: -55°C to 125°C
Mounting Flange: Yes
Mounting Hardware: Yes
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Material: Phosphor Bronze
Contact Finish (Mating): Gold
Contact Finish (Post): Tin
Series: Tiger Eye™ SFMC
