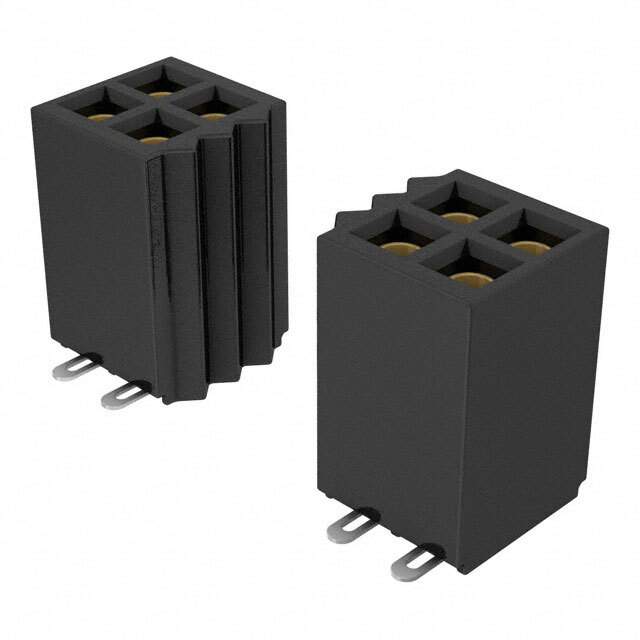

SFMC-105-L2-FM-D Real Image
Same model may have multiple batches, images only for reference.

SFMC-105-L2-FM-D

Part No SFMC-105-L2-FM-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFMC-105-L2-FM-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFMC
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 10
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Insulation Color Black
Insulation Height 0.185" (4.70mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 2.9A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SFMC-105
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285524-SFMC-105-L2-FM-D
Ultra Librarian 3D Model Ultra Librarian SFMC-105-L2-FM-D CAD Model

Description

The 1285524-SFMC-105-L2-FM-D is a Tiger Eye SFMC series receptacle connector with a pitch-mating of 0.050 inches (1.27mm).

  • Series: Tiger Eye SFMC
  • Pitch-Mating: 0.050 inches (1.27mm)
  • Positions: 10
  • Sockets: All Female
  • Rows: Two
  • Contact Finish-Mating: Gold
  • Contact Finish Thickness: 3.00μin (0.076μm)
  • Contact Finish-Post: Tin
  • Current Rating: 2.9A per contact
  • Temperature Range: -55°C to 125°C
  • Material Flammability Rating: UL94 V-0
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Package: Tube
  • Configuration: Board to board or cable style with a push-pull fastening type
  • Category: Rectangular connectors-headers, receptacles, female sockets
  • Manufacturer: Samtec Inc.
