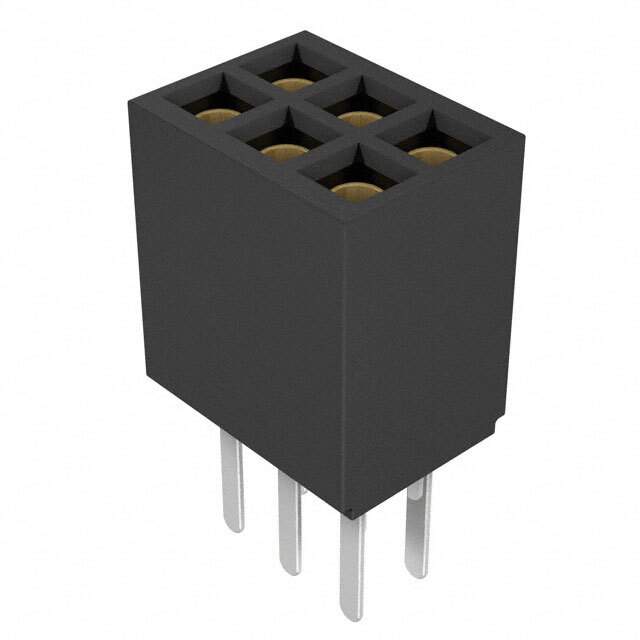

SFMC-103-01-L-D Real Image
Same model may have multiple batches, images only for reference.

SFMC-103-01-L-D

Part No SFMC-103-01-L-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFMC-103-01-L-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFMC
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 6
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.180" (4.57mm)
Contact Length - Post 0.120" (3.05mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 2.9A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SFMC-103
Other Names SAM15256,SFMC-103-01-L-D
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1286710-SFMC-103-01-L-D
Ultra Librarian 3D Model Ultra Librarian SFMC-103-01-L-D CAD Model

Description

The Samtec Inc. SFMC-103-01-L-D is a board-to-board or cable receptacle connector with a pitch of 0.050" (1.27mm) and 6 positions.

  • Positions: 6
  • Pitch: 0.050" (1.27mm)
  • Fastening Type: Push-Pull
  • Mounting Type: Through Hole
  • Contact Material: Beryllium Copper
  • RoHS Compliant: Yes
  • Series: Tiger Eye™ SFMC
  • Current Rating: 2.9A per contact
  • Temperature Range: -55°C to 125°C
