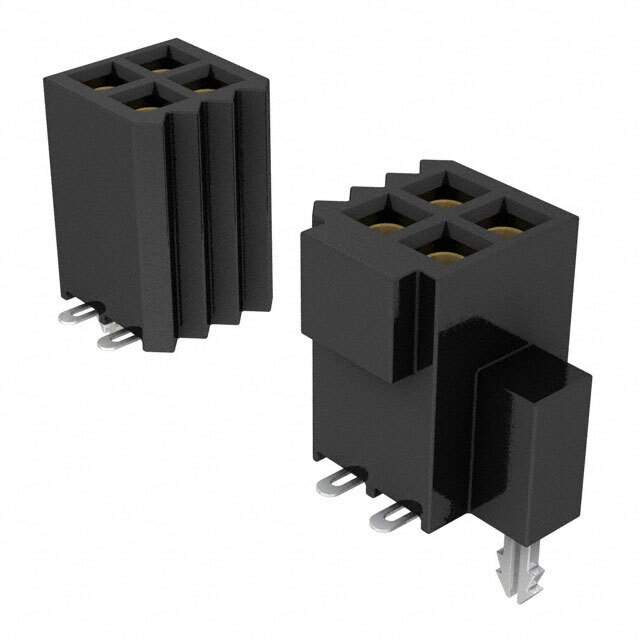

Same model may have multiple batches, images only for reference.

SFM-140-02-S-D-LC

Name: SFM-140-02-S-D-LC
Brand: Samtec Inc.
SKU: 1287106
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SFM-140-02-S-D-LC
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SFM-140-02-S-D-LC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	80
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.185" (4.70mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Features	Board Lock
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFM-140
Other Names	SAM10698,SFM-140-02-S-D-LC
Standard Package	10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1287106-SFM-140-02-S-D-LC
Ultra Librarian 3D Model	Ultra Librarian SFM-140-02-S-D-LC CAD Model

Alternative Products

Description

The 1287106-SFM-140-02-S-D-LC is a rectangular connector that belongs to the headers, receptacles, female sockets category.

Series: Tiger Eye SFM
Number of Positions: 80
Feature: Board Lock
Connector Type: Receptacle
Contact Type: Female Socket
Positions Loaded: All
Number of Rows: 2
Termination: Solder
Fastening Type: Push-Pull
Package: Tube
Standard Package: 10
Voltage Rating: 250VAC
Mated Stacking Heights: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Contact Finish: Gold
Contact Finish Thickness (Mating): 30.0µin (0.76µm)
Contact Finish (Post): Tin
Contact Shape: Square
Row Spacing: 0.050" (1.27mm)
Temperature Range: -55°C to 125°C
ECCN: EAR99
