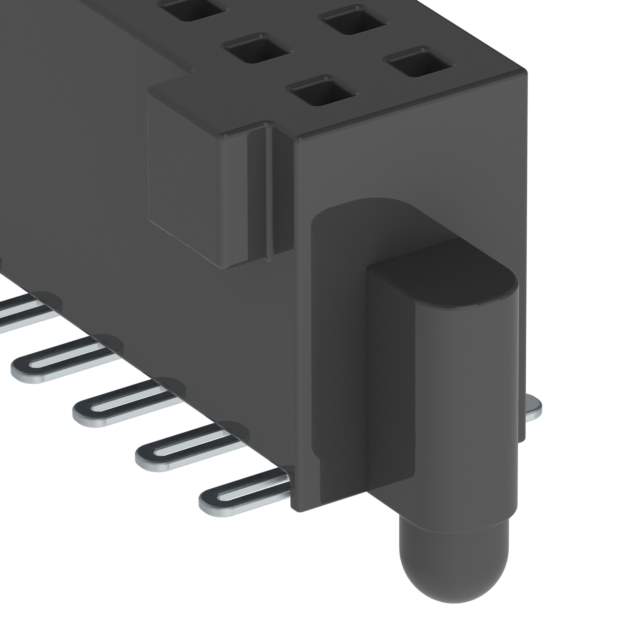

The Samtec Inc. Tiger Eye™ SFM series SFM-135-02-L-D-A-P is a rectangular connector with headers, receptacles, and female sockets.

• Positions: 70
• Features: Board guide, Pick and place
• Connector Type: Receptacle
• Contact Type: Female Socket
• Loading: All positions
• Rows: Two
• Termination: Solder
• Fastening Type: Push-Pull
• Package: Tube
• Contact Material: Beryllium Copper
• Voltage Rating: 250VAC
• Mated Stacking Heights: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, and 11.76mm
• Material Flammability Rating: UL94 V-0
• Insulation Material: Liquid Crystal Polymer (LCP)
• Style: Board to board or cable
• Pitch: 0.050" (1.27mm)
• Contact Finish (Mating): Gold (10.0µin / 0.25µm)
• Contact Finish (Post): Tin
• Insulation Color: Black
• Row Spacing (Mating): 0.050" (1.27mm)
• Insulation Height: 0.185" (4.70mm)
• Contact Shape: Square
• Temperature Range (Operating): -55°C ~ 125°C
• MSL Level: 1 (Unlimited)
• HTSUS: 8536.69.4040
• Base Product Number: SFM-135
