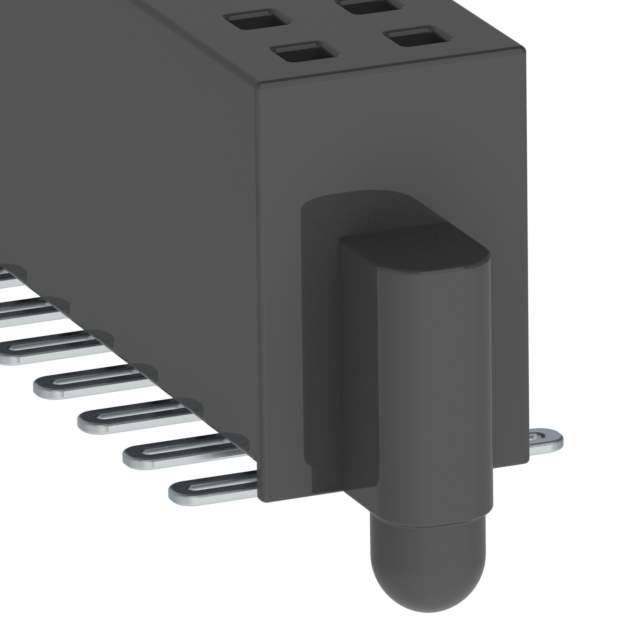

SFM-116-L2-S-D-A-N-TR Real Image
Same model may have multiple batches, images only for reference.

SFM-116-L2-S-D-A-N-TR

Part No SFM-116-L2-S-D-A-N-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFM-116-L2-S-D-A-N-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFM
Package Tape & Reel (TR)
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 32
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.185" (4.70mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Features Board Guide, Pick and Place
Current Rating (Amps) 3.2A per Contact
Voltage Rating 250VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SFM-116
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1287296-SFM-116-L2-S-D-A-N-TR
Ultra Librarian 3D Model Ultra Librarian SFM-116-L2-S-D-A-N-TR CAD Model

Description

The Tiger Eye™ SFM series is a line of rectangular connectors that are perfect for board to board or cable applications.

  • Connector Type: SFM-116-L2-S-D-A-N-TR receptacle
  • Contact Type: 32-position female socket
  • Positions Loaded: all positions
  • Pitch-Mating: 0.050 inches (1.27mm)
  • Current Rating: 3.2A per contact
  • Mounting: surface mount technology (SMT)
  • Package: tape and reel
  • Contact Material: beryllium copper
  • Contact Finish-Mating: gold with a thickness of 30.0µin (0.76µm)
  • Contact Finish-Post: tin
  • Insulation Material: liquid crystal polymer (LCP)
  • Insulation Color: black
  • Voltage Rating: 250VAC
  • Temperature Range: -55°C to 125°C
  • Material Flammability Rating: UL94 V-0
  • ECCN: EAR99 compliant
