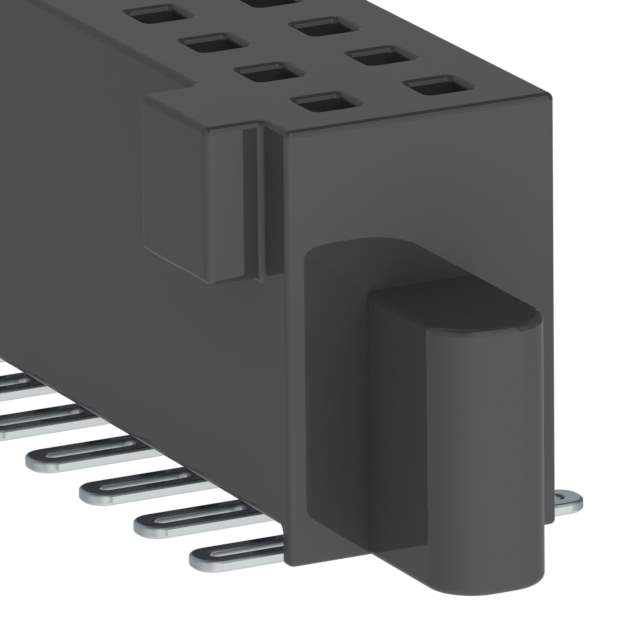

The Samtec Inc. Tiger Eye™ SFM-115-L2-S-D-K is a rectangular connector component with headers, receptacles, and female sockets.

• Positions: 30
• Features: Pick and Place
• Connector Type: Receptacle
• Contact Type: Female Socket
• Positions Loaded: All
• Rows: 2
• Termination: Solder
• Fastening Type: Push-Pull
• Package: Tube
• Contact Material: Beryllium Copper
• Voltage Rating: 250VAC
• Mated Stacking Heights: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, and 11.76mm
• Ingress Protection: N/A
• Applications: N/A
• Material Flammability Rating: UL94 V-0
• Standard Package: 25
• Mounting Type: SMD (SMT)
• Style: Board to Board or Cable
• Pitch-Mating: 0.050" (1.27mm)
• Contact Finish-Mating: Gold
• Contact Finish Thickness: 30.0μin (0.76μm)
• Contact Finish-Post: Tin
• Insulation Color: Black
• Row Spacing-Mating: 0.050" (1.27mm)
• Insulation Height: 0.185" (4.70mm)
• Contact Shape: Square
• Temperature Range: -55°C ~ 125°C
• MSL Level: 1 (Unlimited)
• Current Rating (Amps): 3.2A per contact
• HTSUS: 8536.69.4040
