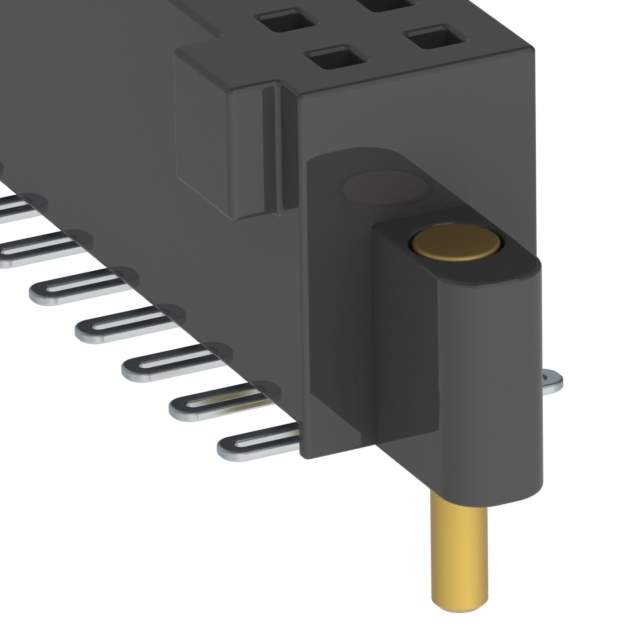

SFM-115-02-S-D-SN

Get a Quote

Part No	SFM-115-02-S-D-SN
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SFM-115-02-S-D-SN Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ SFM
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	30
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.185" (4.70mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Features	Solder Retention
Current Rating (Amps)	3.2A per Contact
Voltage Rating	250VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	SFM-115
Standard Package	24
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1286897-SFM-115-02-S-D-SN
Ultra Librarian 3D Model	Ultra Librarian SFM-115-02-S-D-SN CAD Model

Alternative Products

Description

The Tiger Eye™ SFM series is a range of rectangular connectors that are ideal for use in board-to-board or cable applications.

Connector Type: Receptacle
Fastening Mechanism: Push-Pull
Mounting Technology: Surface-Mount Technology
Positions: 30
Contact Type: Female Sockets
Contact Material: Beryllium Copper
Contact Finish: Gold
Insulation Material: Liquid Crystal Polymer
Contact Finish Thickness: 30.0µin
Insulation Height: 0.185 inches
Current Rating: 3.2A per contact
Operating Temperature: -55°C to 125°C
Package: Tube
Standard Package: 24
