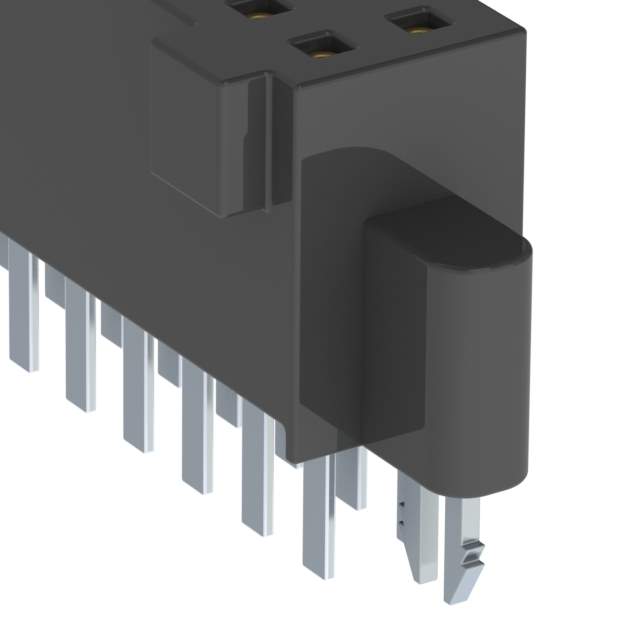

The Tiger Eye™ SFM series from Samtec Inc. is a rectangular connector with a receptacle connector type that has a female socket contact type.

• Pitch-Mating: 0.050” (1.27mm)
• Row Spacing-Mating: 0.050” (1.27mm)
• Model: SFM-113-03-S-D-LC
• Positions: 26
• Rows: 2
• Positions Loaded: All
• Voltage Rating: 250VAC
• Current Rating: 3.2A per contact
• Insulation Material: Liquid crystal polymer (LCP)
• Contact Material: Beryllium copper
• Flammability Rating: UL94 V-0
• Mounting Style: Board-to-board or cable
• Fastening Type: Push-pull
• Board Lock: Yes
• Termination: Solder
• Contact Finish-Mating: Gold
• Contact Finish-Post: Tin
• Insulation Color: Black
• Insulation Height: 0.180” (4.57mm)
• Temperature Range: -55°C to 125°C
• Mounting Type: Through-hole
• Contact Length-Post: 0.075” (1.91mm)
