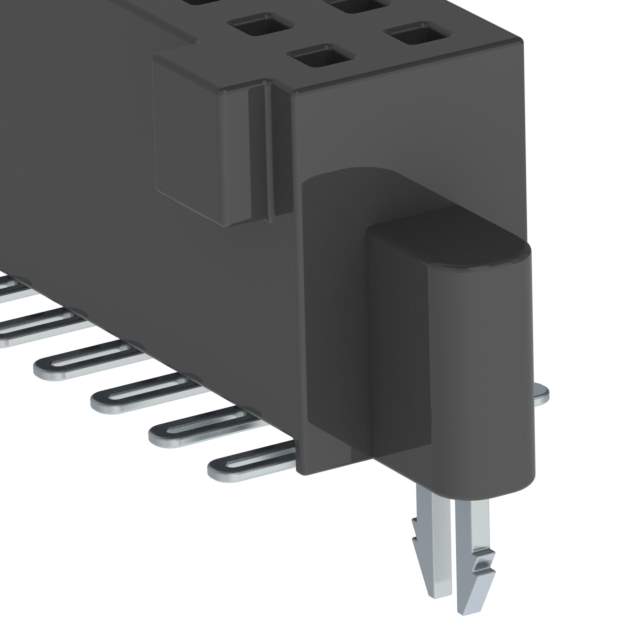

The Tiger Eye™ SFM series is a range of connectors featuring a receptacle connector type with female socket contacts.

• Positions: 20 loaded across 2 rows
• Features: Board lock and push-pull fastening type
• Insulation Material: Liquid crystal polymer (LCP)
• Contact Material: Beryllium copper
• Voltage Rating: 250VAC
• Mated Stacking Heights: 6.15mm to 11.76mm
• Contact Finish for Mating: Gold with a thickness of 30.0μin (0.76μm)
• Contact Finish for Post: Gold with a thickness of 3.00μin (0.076μm)
• Insulation Height: 0.185" (4.70mm)
• Insulation Color: Black
• Applications: Board-to-board or cable
• Pitch-Mating: 0.050" (1.27mm)
• Package: Tube
• Standard Package: 35
