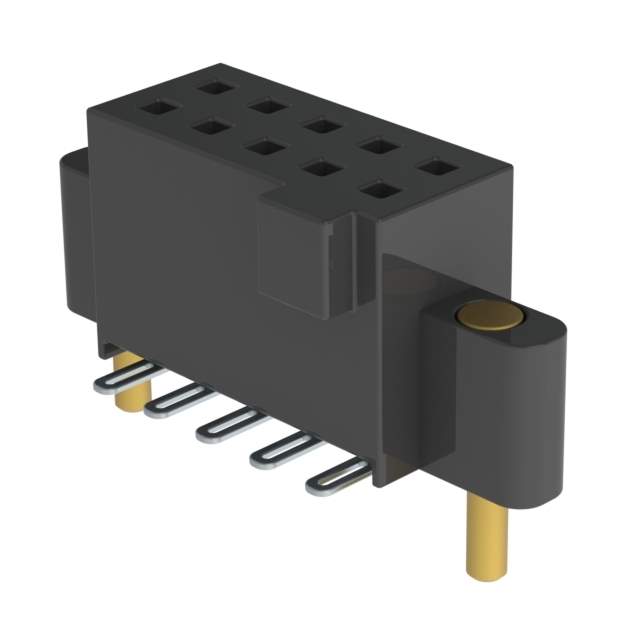

The Tiger Eye™ SFM series by Samtec Inc. features a 10-position receptacle connector with pick and place and solder retention features.

• Positions: 10
• Features: Pick and place, solder retention
• Connector Type: Female socket
• Positions Loaded: All
• Rows: Two
• Termination: Soldering
• Fastening Type: Push-pull
• Package: Tape & reel (TR)
• Contact Material: Beryllium copper
• Voltage Rating: 250VAC
• Mated Stacking Heights: 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, and 11.76mm
• Applications: Board to board or cable
• Pitch-Mating: 0.050" (1.27mm)
• Contact Finish-Mating: Gold
• Finish Thickness: 30.0µin (0.76µm)
• Contact Finish-Post: Tin
• Insulation Material: Liquid crystal polymer (LCP)
• Color: Black
• Insulation Height: 0.185" (4.70mm)
• MSL Level: 1 (Unlimited)
• Current Rating (Amps): 3.2A per contact
