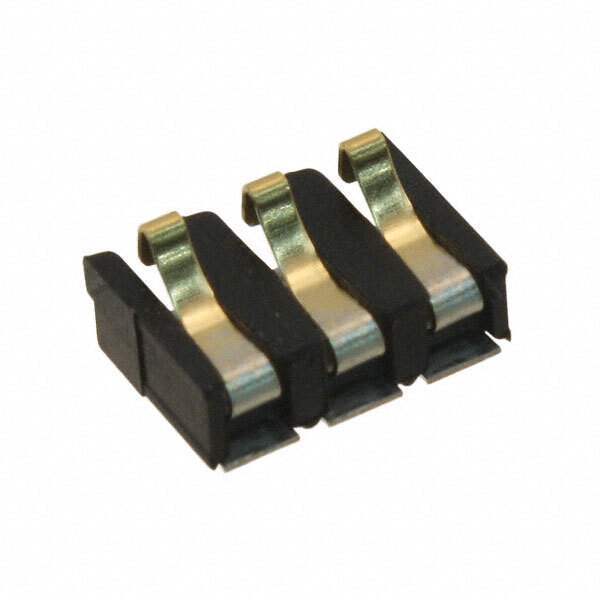

Same model may have multiple batches, images only for reference.

009155003201006

Name: 009155003201006
Brand: Kyocera International Inc. Electronic Components
SKU: WS1305071
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	009155003201006
Manufacturer	Kyocera International Inc. Electronic Components
Catalog	Rectangular Connectors
Description	CONN SPRING BATTERY 3POS SMD
Datasheet	009155003201006 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1305071-009155003201006
Manufacturer	KYOCERA AVX
Category	Connectors, Interconnects-Rectangular Connectors-Spring Loaded
Packaging	Tape & Reel (TR) Cut Tape (CT)
Part Status	Active
Connector Type	Battery Contact
Number of Contacts	3
Pitch	0.098" (2.50mm)
Mounting Type	Surface Mount
Contact Finish Thickness	15.0µin (0.38µm)
Ultra Librarian 3D Model	Ultra Librarian 009155003201006 CAD Model

Alternative Products

Description

The newest product in KYOCERA AVX Interconnect family of battery connectors saves 50% in volume over the initial 9155 series compression connectors as illustrated in the photograph. These connectors are rated at a full 3 amps per contact on 2.5mm centers. Sizes range from 2 positions through 5 positions and are end to end stackable.
