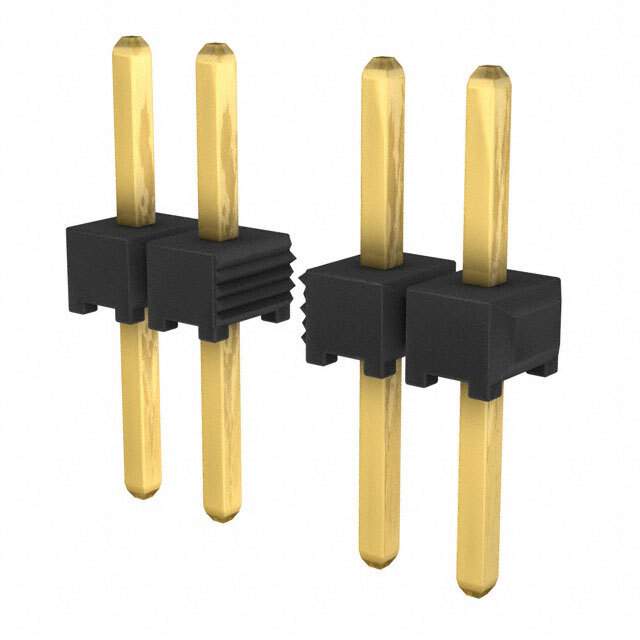

TMM-105-01-G-S

Name: TMM-105-01-G-S
Brand: Samtec Inc.
SKU: 1332517
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TMM-105-01-G-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 5POS 2MM / Connector Header Through Hole 5 position 0.079" (2.00mm)
Datasheet	TMM-105-01-G-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Samtec Inc.
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	5
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.126" (3.20mm)
Contact Length - Post	0.138" (3.50mm)
Overall Contact Length	0.323" (8.20mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Insulation Color	Black
Current Rating (Amps)	3.2A per Contact
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	TMM-105
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	TMM10501GS,SAM1174-05,TMM-105-01-G-S-ND
Standard Package	1
Win Source Part Number	1332517-TMM-105-01-G-S
Ultra Librarian 3D Model	Ultra Librarian TMM-105-01-G-S CAD Model

Alternative Products

Description

The Samtec Inc. 1332517-TMM-105-01-G-S is a 5-position header connector with male pins.

Pitch: 0.079 inches (2.00mm)
Applications: board-to-board or cable
Contact Material: phosphor bronze
Contact Finish: gold
Current Rating: 3.2A per contact
Temperature Range: -55°C to 125°C
Shrouding: unshrouded
Mounting: through-hole
Insulation Material: liquid crystal polymer (LCP)
Insulation Color: black
Contact Length (Mating): 0.126 inches (3.20mm)
Contact Length (Post): 0.138 inches (3.50mm)
Overall Contact Length: 0.323 inches (8.20mm)
ROHS3: compliant
REACH: unaffected
