Same model may have multiple batches, images only for reference.

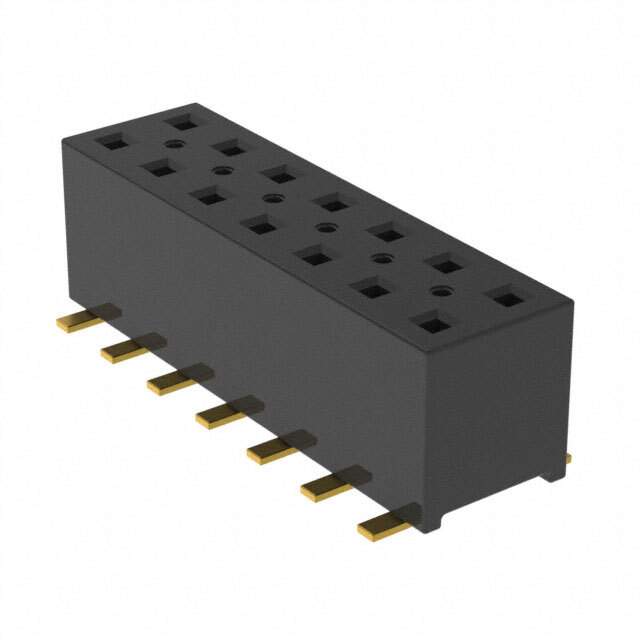

TLE-107-01-G-DV Real Image
Same model may have multiple batches, images only for reference.

TLE-107-01-G-DV

Part No TLE-107-01-G-DV
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN RCPT 14POS 0.079 GOLD SMD / 14 Position Receptacle, Pass Through Connector 0.079" (2.00mm) Surface Mount Gold
Datasheet
TLE-107-01-G-DV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series TLE
Package Bulk
Connector Type Receptacle, Pass Through
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 14
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.177" (4.50mm)
Temperature Range - Operating -55°C ~ 125°C
Current Rating (Amps) 3.2A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number TLE-107
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1341040-TLE-107-01-G-DV
Ultra Librarian 3D Model Ultra Librarian TLE-107-01-G-DV CAD Model

Description

The Samtec Inc. TLE-107-01-G-DV is a rectangular connector that is used for headers, receptacles, and female sockets.

  • Positions Loaded: 14
  • Rows: 2
  • Voltage Rating: - volts
  • Contact Material: Phosphor bronze
  • Fastening Type: Push-pull mechanism
  • Contact Finish: Gold
  • Insulation Material: Liquid crystal polymer (LCP)
  • Mounting Type: Surface mountable
  • Row Spacing: 0.079 inches (2.00mm)
  • Insulation Height: 0.177 inches (4.50mm)
  • Contact Shape: Square
  • Temperature Range: -55°C to 125°C
  • Applications: Board to board or cable style
  • Current Rating: 3.2A per contact
