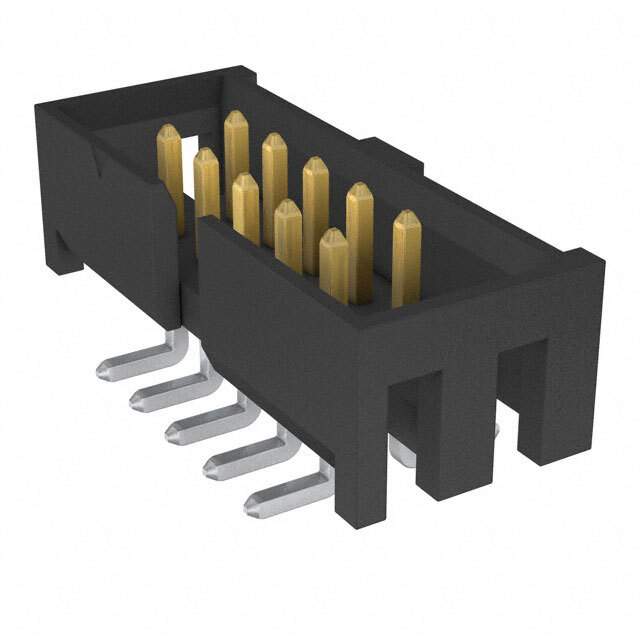

STMM-105-02-S-D-SM

Name: STMM-105-02-S-D-SM
Brand: Samtec Inc.
SKU: 1293206
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	STMM-105-02-S-D-SM
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	STMM-105-02-S-D-SM Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, STMM
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.190" (4.83mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	STMM-105
Other Names	SAM10040
Standard Package	35
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293206-STMM-105-02-S-D-SM
Ultra Librarian 3D Model	Ultra Librarian STMM-105-02-S-D-SM CAD Model

Alternative Products

Description

The STMM-105-02-S-D-SM is a male pin header connector from Samtec's Flex Stack series.

Positions Loaded: 10
Rows: 2
Series: Flex Stack
Keying: Keying Slot
Fastening Type: Push-Pull
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Application: Board to cable/wire
Mating Pitch: 0.079 inches (2.00mm)
Contact Finish: Gold with 30.0µin (0.76µm) thickness for mating and tin finish for post
Shrouding: Shrouded with 4 walls
Row Spacing: 0.079 inches (2.00mm)
Contact Length (Mating): 0.120 inches (3.05mm)
Insulation Height: 0.190 inches (4.83mm)
Temperature Range: -55°C to 125°C
Current Rating: 3A
