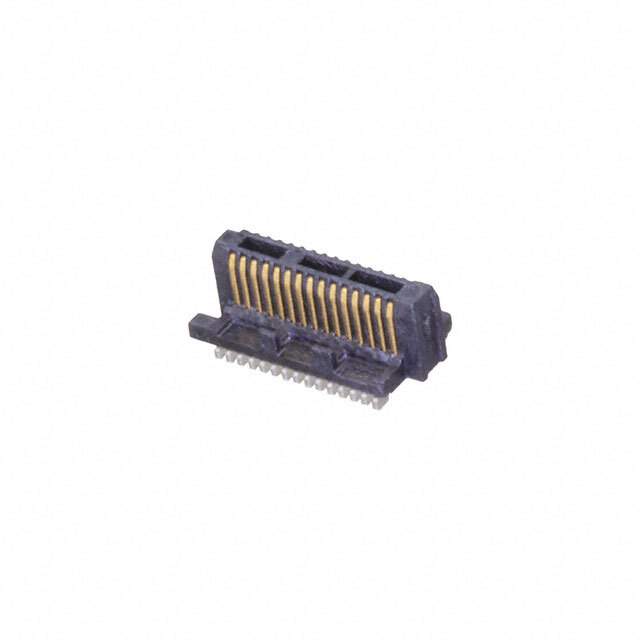

ST4-15-1.00-L-D-P-TR

Name: ST4-15-1.00-L-D-P-TR
Brand: Samtec Inc.
SKU: 1293961
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ST4-15-1.00-L-D-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	ST4-15-1.00-L-D-P-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Razor Beam™ ST4
Package	Tape & Reel
Connector Type	Header, Center Strip Contacts
Number of Positions	30
Pitch	0.016" (0.40mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	4mm, 4.5mm
Height Above Board	0.121" (3.07mm)
Base Product Number	ST4-15
Other Names	SAM14629TR,SAM14629CT,ST4-15-1.00-L-D-P-FR,ST4-15-1.00-L-D-P-TR,SAM14629DKR
Standard Package	1,125
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293961-ST4-15-1.00-L-D-P-TR
Ultra Librarian 3D Model	Ultra Librarian ST4-15-1.00-L-D-P-TR CAD Model

Alternative Products

Description

The Razor Beam™ ST4 edge type, mezzanine (board to board) connector is a reliable and efficient solution for connecting rectangular connectors.

Rows: 2
Positions: 30
Pitch: 0.016" (0.40mm)
Contacts: Center strip contacts
Features: Pick and place
Contact Finish: Gold
Thickness: 10.0µin (0.25µm)
Height Above Board: 0.121" (3.07mm)
Mated Stacking Heights: 4mm and 4.5mm
Mounting: Surface Mount
Packaging: Tape and reel
Standard Package: 1,125
