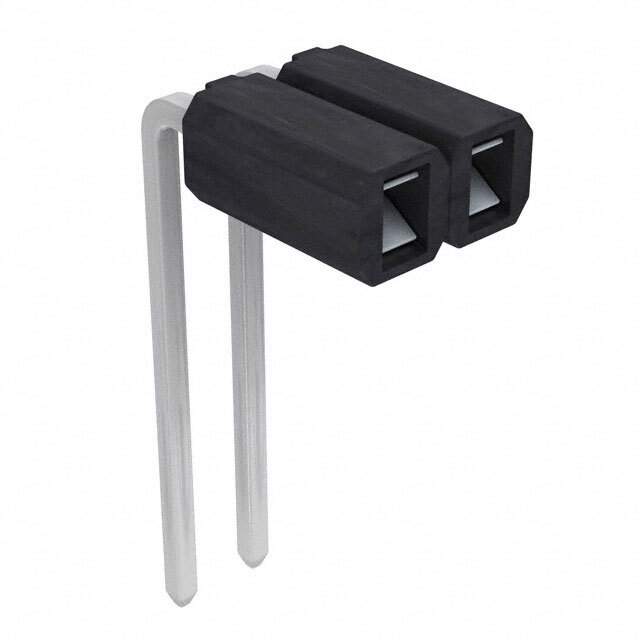

Same model may have multiple batches, images only for reference.

SSA-102-W-T-RA

Get a Quote

Part No	SSA-102-W-T-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSA-102-W-T-RA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSA
Package	Bulk
Connector Type	Receptacle, Breakaway
Contact Type	Female Socket
Style	Board to Board
Number of Positions	2
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole, Right Angle
Termination	Wire Wrap
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.100" (2.54mm)
Contact Length - Post	0.575" (14.61mm)
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Voltage Rating	1000V
Insulation Material	Polyethylene Terephthalate (PET), Polyester
Contact Material	Phosphor Bronze
Base Product Number	SSA-102
Other Names	SAM1126-02
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1291984-SSA-102-W-T-RA
Ultra Librarian 3D Model	Ultra Librarian SSA-102-W-T-RA CAD Model

Alternative Products

Description

The SSA series connector from Samtec Inc. is a receptacle connector that features two positions loaded with female sockets.

Termination: wire wrap
Voltage Rating: up to 1000V
Contact Material: phosphor bronze
Insulation Material: polyethylene terephthalate (PET) or polyester
Insulation Color: black
Pitch: 0.100" (2.54mm)
Mounting: through hole, right angle
Contact Finish: tin
Insulation Height: 0.100" (2.54mm)
Temperature Range: -55°C to 105°C
Material Flammability Rating: UL94 V-0
Packaging: bulk
Applications: board-to-board
