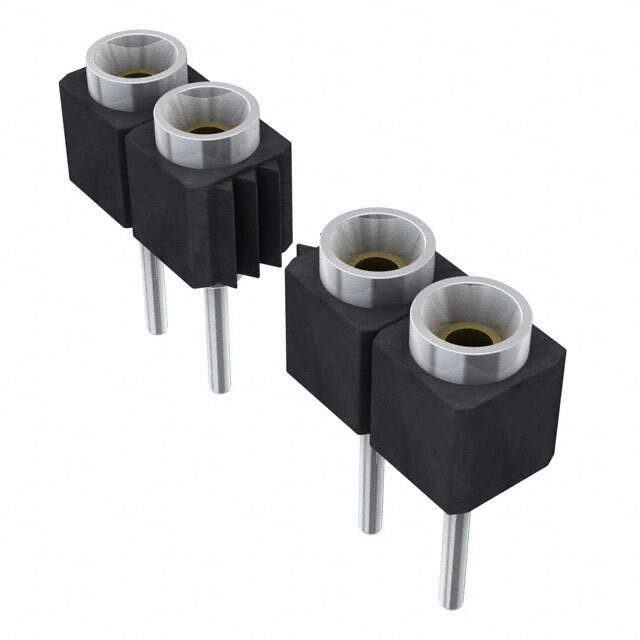

Same model may have multiple batches, images only for reference.

SS-106-T-2-N

Name: SS-106-T-2-N
Brand: Samtec Inc.
SKU: 1292115
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SS-106-T-2-N
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SS-106-T-2-N Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SS
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.100" (2.54mm)
Contact Length - Post	0.125" (3.18mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape	Circular
Contact Material	Beryllium Copper
Base Product Number	SS-106
Other Names	SAM1118-06
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292115-SS-106-T-2-N
Ultra Librarian 3D Model	Ultra Librarian SS-106-T-2-N CAD Model

Alternative Products

Description

The SS 1292115-SS-106-T-2-N is a high-quality rectangular connector that features a receptacle connector type and female socket contact type.

Series: SS
Pitch: 0.100 inches
Packaging: Tube
Contact Finish: Gold with a thickness of 30.0µin (0.76µm)
Contact Finish: Tin
