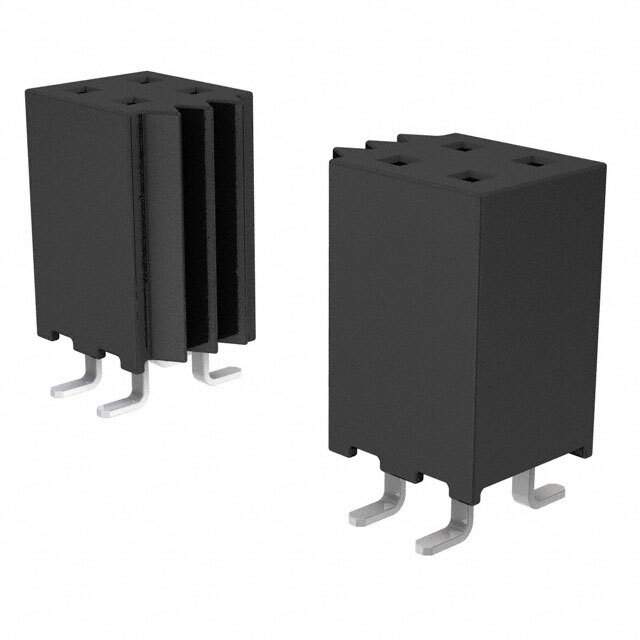

Same model may have multiple batches, images only for reference.

SQW-121-01-L-D-VS

Name: SQW-121-01-L-D-VS
Brand: Samtec Inc.
SKU: 1292269
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SQW-121-01-L-D-VS
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SQW-121-01-L-D-VS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SQW
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	42
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.300" (7.62mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	3.8A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SQW-121
Standard Package	1
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292269-SQW-121-01-L-D-VS
Ultra Librarian 3D Model	Ultra Librarian SQW-121-01-L-D-VS CAD Model

Alternative Products

Description

The Samtec Inc. 1292269-SQW-121-01-L-D-VS is a 42-position female receptacle connector with a pitch of 0.079" (2.00mm) and two rows.

Positions: 42
Connector Type: Female Receptacle
Pitch: 0.079" (2.00mm)
Rows: Two
Contact Type: Forked
Termination: Solder
Contact Material: Phosphor bronze
Contact Finish: Gold
Current Rating: 3.8A per contact
Temperature Range: -55°C to 125°C
Popularity: Low
