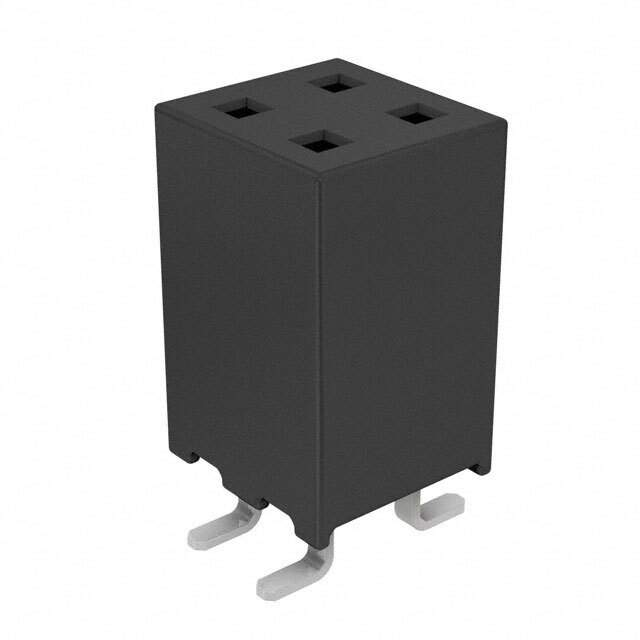

SQW-102-01-L-D-VS

Name: SQW-102-01-L-D-VS
Brand: Samtec Inc.
SKU: 1292306
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SQW-102-01-L-D-VS
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SQW-102-01-L-D-VS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SQW
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	4
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.300" (7.62mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	3.8A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SQW-102
Standard Package	1
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292306-SQW-102-01-L-D-VS
Ultra Librarian 3D Model	Ultra Librarian SQW-102-01-L-D-VS CAD Model

Alternative Products

Description

The SQW series rectangular connector is a perfect choice for board to board or cable applications.

Pitch-Mating: 0.079 inches (2.00mm)
Row Spacing-Mating: 0.079 inches (2.00mm)
Contact Finish-Mating: Gold (10.0μin (0.25μm))
Contact Finish-Post: Tin
Positions: 4
Rows: 2
Contact Type: Forked
Termination: Solder
Voltage Rating: Not Available
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Insulation Height: 0.300 inches (7.62mm)
Operating Temperature Range: -55°C to 125°C
