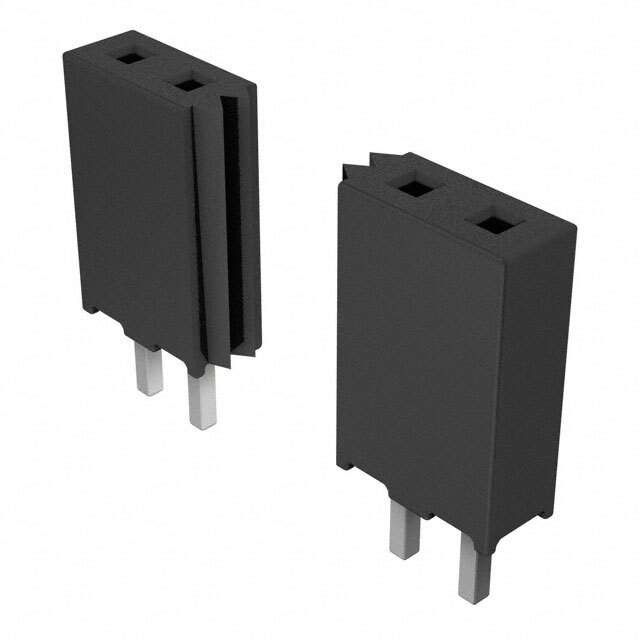

SQT-124-01-L-S Real Image
Same model may have multiple batches, images only for reference.

SQT-124-01-L-S

Part No SQT-124-01-L-S
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SQT-124-01-L-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SQT
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 24
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 1
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.250" (6.35mm)
Contact Length - Post 0.090" (2.29mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 5.1A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SQT-124
Other Names SAM1247-24
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292448-SQT-124-01-L-S
Ultra Librarian 3D Model Ultra Librarian SQT-124-01-L-S CAD Model

Description

The Samtec Inc. SQT is a rectangular connector with headers and female sockets.

  • Connector Type: Receptacle Connector
  • Pitch: 0.079” (2.00mm)
  • Number of Positions: 24
  • Number of Rows: 1
  • Contact Type: Forked
  • Termination Type: Solder
  • Contact Finish (Mating): Gold with a thickness of 10.0µin (0.25µm)
  • Contact Finish (Post): Tin
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Height: 0.250” (6.35mm)
  • Temperature Range: -55°C to 125°C
  • Category: Connectors
  • Part Number: 1292448-SQT-124-01-L-S
  • Popularity: Medium
  • Current Rating (Amps): 5.1A per contact
  • HTSUS: 8536.69.4040
  • Other Names: SAM1247-24
  • Base Product Number: SQT-124
