Same model may have multiple batches, images only for reference.

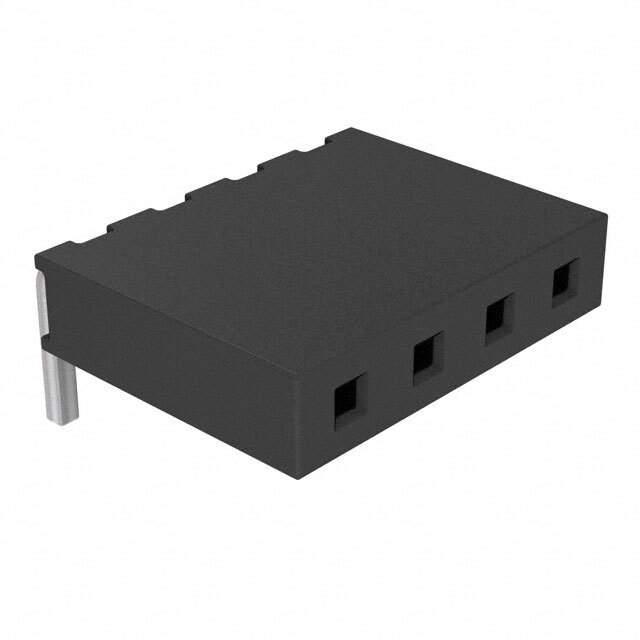

SQT-104-01-F-S-RA

Name: SQT-104-01-F-S-RA
Brand: Samtec Inc.
SKU: 1292307
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SQT-104-01-F-S-RA
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SQT-104-01-F-S-RA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SQT
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	4
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	1
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Insulation Color	Black
Insulation Height	0.079" (2.00mm)
Contact Length - Post	0.090" (2.29mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	5.1A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SQT-104
Other Names	SAM12882,SQT-104-01-F-S-RA
Standard Package	69
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292307-SQT-104-01-F-S-RA
Ultra Librarian 3D Model	Ultra Librarian SQT-104-01-F-S-RA CAD Model

Alternative Products

Description

The SQT series from Samtec Inc. is a rectangular connector with a receptacle type connector and forked contact type.

Positions: 4
Positions Loaded: All
Pitch: 0.079" (2.00mm)
Mounting: Through Hole, Right Angle
Contact Finish: Gold
Contact Finish Thickness: Flash
Contact Material: Phosphor Bronze
Contact Length (Post): 0.090" (2.29mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Height: 0.079" (2.00mm)
Current Rating: 5.1A per contact
Temperature Range: -55°C to 125°C
Applications: Board to Board or Cable
