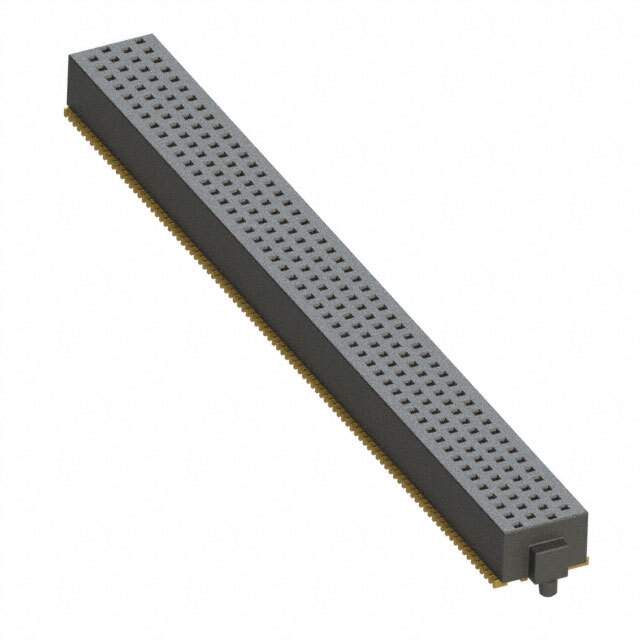

Same model may have multiple batches, images only for reference.

SOLC-150-02-L-Q-A

Name: SOLC-150-02-L-Q-A
Brand: Samtec Inc.
SKU: 1293061
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SOLC-150-02-L-Q-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SOLC-150-02-L-Q-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	FOURRAY™ SOLC
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	200
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	4
Row Spacing - Mating	0.050" (1.27mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.160" (4.06mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Features	Board Guide
Current Rating (Amps)	2.4A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SOLC-150
Other Names	SAM11851,SOLC-150-02-L-Q-A
Standard Package	8
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293061-SOLC-150-02-L-Q-A
Ultra Librarian 3D Model	Ultra Librarian SOLC-150-02-L-Q-A CAD Model

Alternative Products

Description

This electronic component is a rectangular connector with a part number of 1293061-SOLC-150-02-L-Q-A.

Series: FOURRAY™ SOLC
Category: Connectors and Interconnects
Positions: 200
Contacts: Forked
Design: Receptacle
Fastening Type: Push-Pull
Termination: Soldering
Contact Shape: Square
Temperature Range: -55°C to 125°C
Manufacturer: Samtec Inc.
Current Rating: 2.4A per contact
