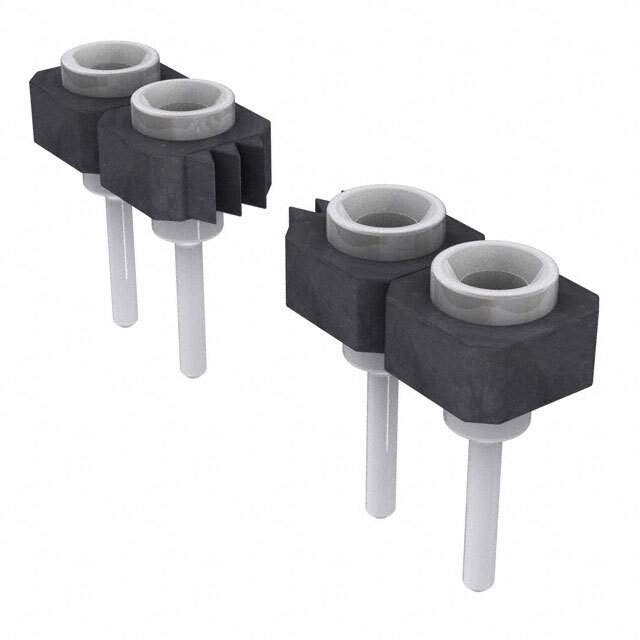

Name: SL-125-TT-11
Brand: Samtec Inc.
SKU: 1292800
Availability: InStock
Rating: 4.85 (5 reviews)

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SL
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	25
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Insulation Color	Black
Insulation Height	0.132" (3.35mm)
Contact Length - Post	0.108" (2.75mm)
Temperature Range - Operating	-55°C ~ 105°C
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Circular
Contact Material	Beryllium Copper
Base Product Number	SL-125
Other Names	SAM1109-25
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292800-SL-125-TT-11
Ultra Librarian 3D Model	Ultra Librarian SL-125-TT-11 CAD Model

Description

The SL-125-TT-11 is a rectangular connector that falls under the category of connectors, interconnects - rectangular connectors - headers, receptacles, female sockets.

Manufacturer: Samtec Inc.
Win Source Part Number: 1292800
Series: SL
Positions: 25
Connector Type: Receptacle
Contact Type: Female Socket
Positions Loaded: Yes
Number of Rows: 1
Termination Type: Solder
Fastening Type: Push-Pull
Package: Bulk
Standard Package: 1
Contact Material: Beryllium Copper
Insulation Material: Liquid Crystal Polymer (LCP)
Style: Board-to-Board
Pitch-Mating: 0.100" (2.54mm)
Contact Finish-Mating: Tin
Contact Finish-Post: Tin
Insulation Color: Black
Mounting Type: Through-Hole
Contact Length-Post: 0.108" (2.75mm)
Insulation Height: 0.132" (3.35mm)
Contact Shape: Circular
Operating Temperature: -55°C ~ 105°C
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.4040
