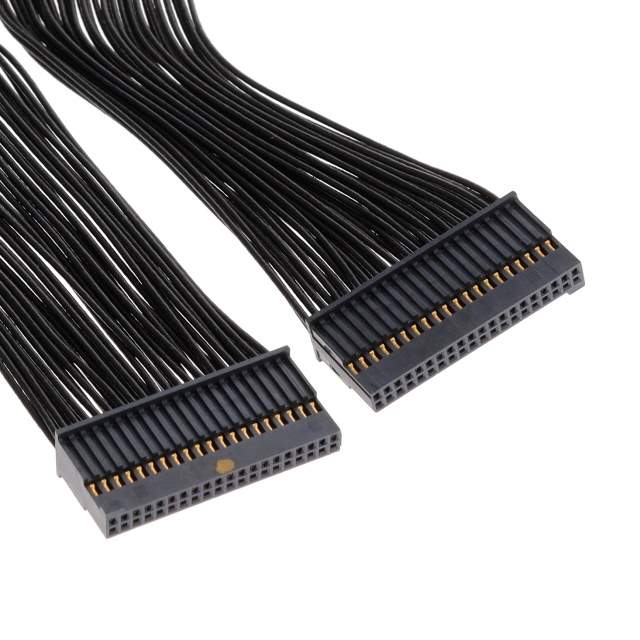

SFSD-20-30-H-03.96-D-NUS Real Image
Same model may have multiple batches, images only for reference.

SFSD-20-30-H-03.96-D-NUS

Part No SFSD-20-30-H-03.96-D-NUS
Manufacturer Samtec Inc.
Catalog Rectangular Cable Assemblies
Datasheet
SFSD-20-30-H-03.96-D-NUS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Rectangular Cable Assemblies
Mfr Samtec Inc.
Series Tiger Eye™ SFSD
Package Bulk
Connector Type Socket to Socket
Number of Positions 40
Number of Rows 2
Pitch - Connector 0.050" (1.27mm)
Length 0.330' (100.58mm, 3.96")
Features Polarizing Key
Color Black, Individual
Shielding Unshielded
Cable Termination Crimp
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number SFSD-20
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8544.42.9090
Win Source Part Number 1310095-SFSD-20-30-H-03.96-D-NUS
Ultra Librarian 3D Model Ultra Librarian SFSD-20-30-H-03.96-D-NUS CAD Model

Description

The Samtec Inc. SFSD-20-30-H-03.96-D-NUS is a rectangular cable assembly with 40 positions and a socket to socket connector type.

  • Positions: 40
  • Connector Type: Socket to Socket
  • Pitch: 0.050" (1.27mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Length: 0.330' (100.58mm, 3.96")
  • Shielding: Unshielded
  • Polarizing Key: Yes
  • Cable Termination: Crimp
