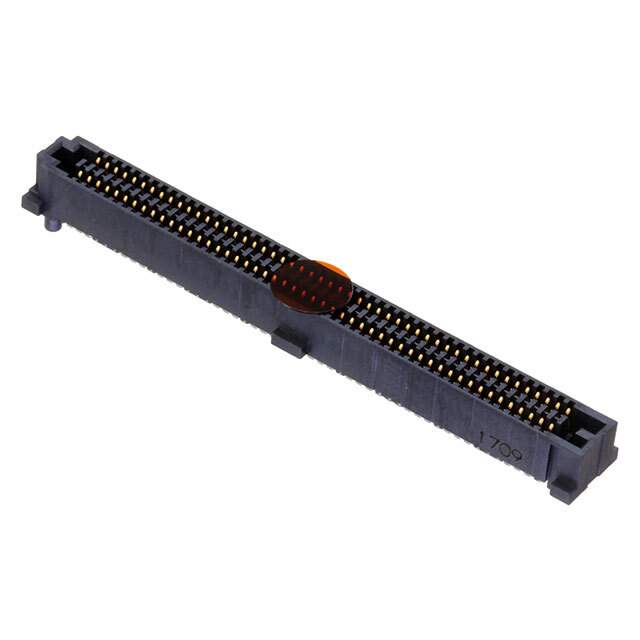

SEAF8-50-05.0-S-04-2-K Real Image
Same model may have multiple batches, images only for reference.

SEAF8-50-05.0-S-04-2-K

Part No SEAF8-50-05.0-S-04-2-K
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF8-50-05.0-S-04-2-K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Strip
Connector Type High Density Array, Female
Number of Positions 200
Pitch 0.031" (0.80mm)
Number of Rows 4
Mounting SMD (SMT)
Features Board Guide, Pick and Place
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 7mm, 10mm
Height Above Board 0.180" (4.57mm)
Base Product Number SEAF8-50
Other Names SAM11671,SEAF8-50-05.0-S-04-2-K
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293926-SEAF8-50-05.0-S-04-2-K
Ultra Librarian 3D Model Ultra Librarian SEAF8-50-05.0-S-04-2-K CAD Model

Description

The SEAF8 series connector is a high-density array connector that is designed to be used in mezzanine (board-to-board) applications.

  • Pitch: 0.031" (0.80mm)
  • Positions: 200
  • Rows: 4
  • Height Above Board: 0.180" (4.57mm)
  • Mounting: SMD (SMT)
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Package: Strip package
  • Standard Package: 1
  • Mated Stacking Height: 7mm and 10mm
