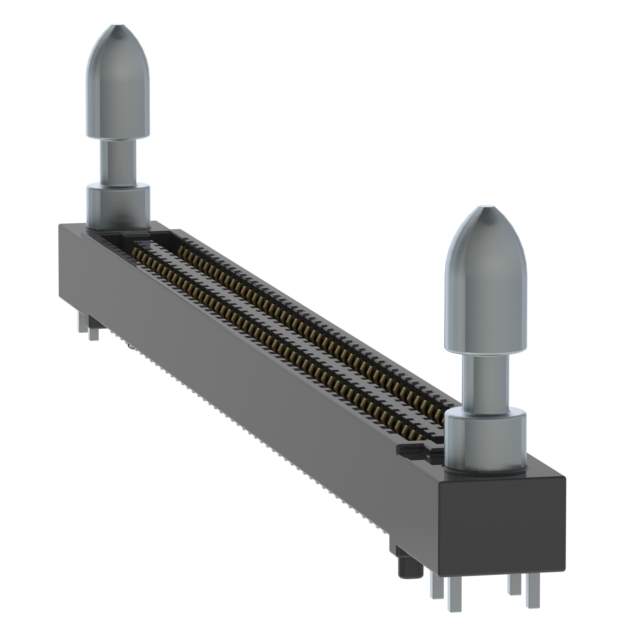

SEAF-50-05.0-L-04-1-A-LP-K-TR

Name: SEAF-50-05.0-L-04-1-A-LP-K-TR
Brand: Samtec Inc.
SKU: 1293698
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SEAF-50-05.0-L-04-1-A-LP-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-50-05.0-L-04-1-A-LP-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR)
Connector Type	High Density Array, Female
Number of Positions	200
Pitch	0.050" (1.27mm)
Number of Rows	4
Mounting	SMD (SMT)
Features	Board Guide, Latches, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board	0.199" (5.05mm)
Base Product Number	SEAF-50
Standard Package	100
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293698-SEAF-50-05.0-L-04-1-A-LP-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-50-05.0-L-04-1-A-LP-K-TR CAD Model

Alternative Products

Description

The SEARAY SEAF series connector from Samtec Inc. is an edge type, mezzanine (board to board) connector that features a high-density array, female connector type.

Series: SEARAY SEAF
Connector Type: High-Density Array, Female
Positions: 200
Pitch: 0.050 inches (1.27mm)
Rows: 4
Height Above Board: 0.199 inches (5.05mm)
Height Stacking Range: 7mm to 18mm
Package Type: Tape and Reel (TR)
Standard Package: 100
Operating Temperature Range: -55°C to 125°C
