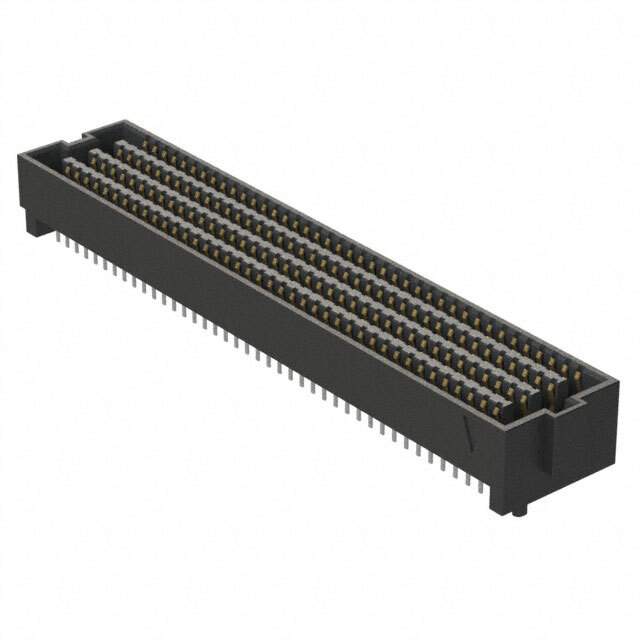

SEAF-40-05.0-S-08-1-A-K-TR

Name: SEAF-40-05.0-S-08-1-A-K-TR
Brand: Samtec Inc.
SKU: 1293822
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-40-05.0-S-08-1-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-40-05.0-S-08-1-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR),Cut Tape (CT)
Connector Type	High Density Array, Female
Number of Positions	320
Pitch	0.050" (1.27mm)
Number of Rows	8
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board	0.199" (5.05mm)
Base Product Number	SEAF-40
Other Names	SAM14358DKRINACTIVE,SEAF-40-05.0-S-08-1-A-K-TR,SAM14358DKR,SAM14358CT,SAM14358DKR,SAM14358TR
Standard Package	225
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293822-SEAF-40-05.0-S-08-1-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-40-05.0-S-08-1-A-K-TR CAD Model

Alternative Products

Description

The SEARAY™ SEAF connector is a high-density array, female type connector with eight rows of 40 gold-plated contacts.

Series: SEARAY™ SEAF
Connector Type: High-Density Array, Female
Rows: 8
Contacts: Gold-Plated
Positions: 320
Pitch: 0.050" (1.27mm)
Application: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Height Above Board: 0.199" (5.05mm)
Packaging: Tape & Reel (TR) and Cut Tape (CT)
Mated Stacking Heights: 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, and 18mm
Mounting: SMD (SMT)
Features: Board Guide and Pick and Place
