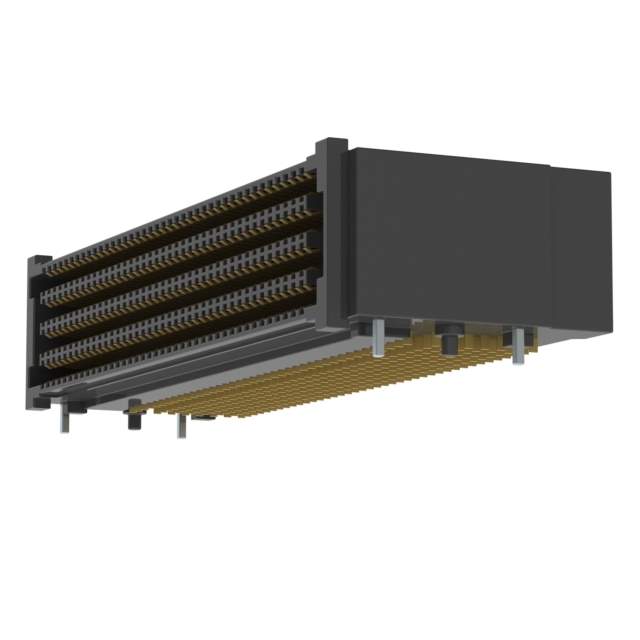

SEAF-40-01-S-08-1-RA-K-TR

Name: SEAF-40-01-S-08-1-RA-K-TR
Brand: Samtec Inc.
SKU: 1293611
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-40-01-S-08-1-RA-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-40-01-S-08-1-RA-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR)
Connector Type	High Density Array, Female
Number of Positions	320
Pitch	0.050" (1.27mm)
Number of Rows	8
Mounting Type	Surface Mount, Right Angle
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Height Above Board	0.511" (12.99mm)
Base Product Number	SEAF-40
Standard Package	75
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293611-SEAF-40-01-S-08-1-RA-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-40-01-S-08-1-RA-K-TR CAD Model

Alternative Products

Description

The Samtec Inc. SEARAY™ SEAF series connector is an edge type, mezzanine (board to board) connector with a high density array, female connector type.

Positions: 320
Rows: 8
Pitch: 0.050 inches
Mounting Type: surface mount, right angle
Color: black
Contact Finish: gold
Contact Finish Thickness: 30.0µin (0.76µm)
Insulation Material: liquid crystal polymer (LCP)
Height Above Board: 0.511 inches
Standard Package: 75
ECCN: EAR99
Ideal for: pick and place applications
